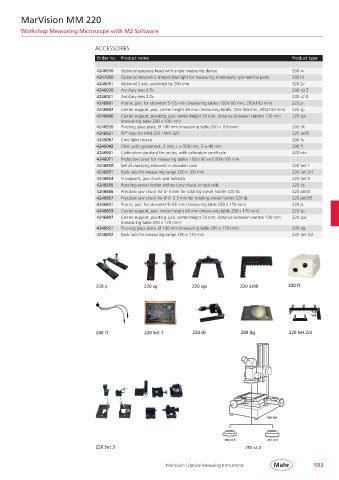

P. 597
MarVision MM 220
Workshop Measuring Microscope with M2 Software
ACCESSORIES
Order no. Product name Product type
4246010 Optional eyepiece head with angle measuring device 200 w
4247050 Optional telecentric transmitted light for measuring rotationally symmetrical parts 200 ld
4246051 Optional Z axis, extended by 200 mm 320 Zv
4246020 Ancillary lens 0.5x 200 v0.5
4246021 Ancillary lens 2.0x 200 v2.0
4246801 Prisms, pair, for diameter 5– 55 mm (measuring tables 100x100 mm, 200x100 mm) 220 p
4246802 Center support, pair, center height 40 mm (measuring tables 100x100 mm, 200x100 mm) 220 sp
4246806 Center support, pivoting, pair, center height 50 mm, distance between centers 130 mm 220 sps
(measuring table 200 x 100 mm)
4246920 Pivoting glass plate, Ø 100 mm (measuring table 200 x 100 mm) 200 dk
4246821 90° stop for MM 220 / MM 320 220 as90
4245067 Cold light source 300 fs
4245042 Fiber optic gooseneck, 2 arm, L = 500 mm, D = 40 mm 200 fl
4246901 Calibration standard for circles, with calibration certificate 320 nkz
4246071 Protective cover for measuring tables 100x100 and 200x100 mm
4246850 Set of clamping elements in wooden case 220 Set 1
4246851 Rack rails for measuring range 200 x 100 mm 220 Set 2/1
4246854 V-supports, jaw chuck and tailstock 220 Set 3
4246855 Rotating swivel holder without jaw chuck or rack rails 220 ds
4246856 Precision jaw chuck for 0– 3 mm for rotating swivel holder 220 ds 220 pb03
4246857 Precision jaw chuck for Ø 0– 6.5 mm for rotating swivel holder 220 ds 220 pb065
4246831 Prisms, pair, for diameter 5– 55 mm (measuring table 250 x 170 mm) 220 p
4246833 Center support, pair, center height 40 mm (measuring table 250 x 170 mm) 220 sp
4246807 Center support, pivoting, pair, center height 50 mm, distance between centers 130 mm 220 sps
(measuring table 250 x 170 mm)
4246921 Pivoting glass plate, Ø 100 mm (measuring table 250 x 170 mm) 200 dg
4246852 Rack rails for measuring range 250 x 170 mm 220 Set 2/2
220 p 220 sp 220 sps 220 as90 300 fs
200 fl 220 Set 1 220 ds 200 dg 220 Set 2/3
MM 200
200 v0,5 200 v2,0
220 Set 3 200 v2.0
MarVision | Optical Measuring Instruments 593
