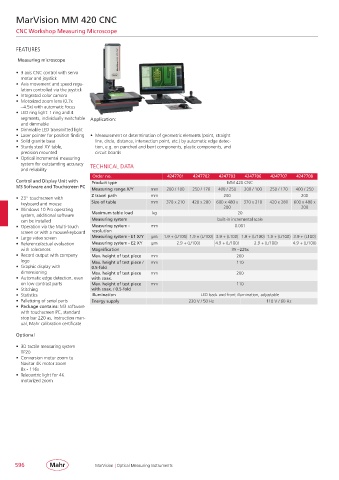

MarVision MM 420 CNC

CNC Workshop Measuring Microscope

FEATURES

Measuring microscope
• 3 axis CNC control with servo
motor and joystick
• Axis movement and speed regu-
lation controlled via the joystick
• Integrated color camera
• Motorized zoom lens (0.7x
– 4.5x) with automatic focus
• LED ring light: 1 ring and 4
segments, individually switchable Application:
and dimmable
• Dimmable LED transmitted light
• Laser pointer for position finding • Measurement or determination of geometric elements (point, straight
• Solid granite base line, circle, distance, intersection point, etc.) by automatic edge detec-
• Sturdy steel XY table, tion, e.g. on punched and bent components, plastic components, and
precision mounted circuit boards
• Optical incremental measuring
system for outstanding accuracy TECHNICAL DATA
and reliability
Order no. 4247701 4247702 4247703 4247706 4247707 4247708
Control and Display Unit with Product type MM 420 CNC
M3 Software and Touchscreen PC
Measuring range X/Y mm 200 / 100 250 / 170 400 / 250 200 / 100 250 / 170 400 / 250
Z travel path mm 200 200
• 23” touchscreen with
keyboard and mouse Size of table mm 370 x 210 420 x 280 600 x 480 x 370 x 210 420 x 280 600 x 480 x
• Windows 10 Pro operating 200 200
system, additional software Maximum table load kg 20
can be installed Measuring system built-in incremental scale
• Operation via the Multi-touch Measuring system - mm 0.001
screen or with a mouse/keyboard resolution
• Large video screen Measuring system - E1 X/Y µm 1.9 + (L/100) 1.9 + (L/100) 3.9 + (L100) 1.9 + (L/100) 1.9 + (L/100) 3.9 + (L100)
• Reference/actual evaluation Measuring system - E2 XY µm 2.9 + (L/100) 4.9 + (L/100) 2.9 + (L/100) 4.9 + (L/100)
with tolerances Magnification 35 – 225x
• Record output with company Max. height of test piece mm 200
logo Max. height of test piece / mm 110
• Graphic display with 0.5-fold
dimensioning Max. height of test piece mm 200
• Automatic edge detection, even with coax.
on low contrast parts Max. height of test piece mm 110
• Stitching with coax. / 0.5-fold
• Statistics Illumination LED back and front illumination, adjustable
• Palletizing of serial parts Energy supply 230 V / 50 Hz 110 V / 60 Hz
• Package contains: M3 software
with touchscreen PC, standard
stop bar 220 as, instruction man-
ual, Mahr calibration certificate

Optional
• 3D tactile measuring system
TP20
• Conversion motor zoom to
Navitar 4K motor zoom
8x - 116x
• Telecentric light for 4K
motorized zoom

596 MarVision | Optical Measuring Instruments
