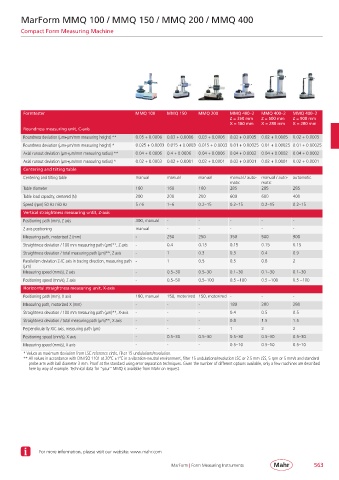

MarForm MMQ 100 / MMQ 150 / MMQ 200 / MMQ 400

Compact Form Measuring Machine

Formtester MMQ 100 MMQ 150 MMQ 200 MMQ 400– 2 MMQ 400– 2 MMQ 400– 2
Z = 350 mm Z = 500 mm Z = 900 mm
X = 180 mm X = 280 mm X = 280 mm
Roundness measuring unit, C-axis
Roundness deviation (µm+µm/mm measuring height) ** 0.05 + 0.0006 0.03 + 0.0006 0.03 + 0.0006 0.02 + 0.0005 0.02 + 0.0005 0.02 + 0.0005
Roundness deviation (µm+µm/mm measuring height) * 0.025 + 0.0003 0.015 + 0.0003 0.015 + 0.0003 0.01 + 0.00025 0.01 + 0.00025 0.01 + 0.00025
Axial runout deviation (µm+µm/mm measuring radius) ** 0.04 + 0.0006 0.4 + 0.0006 0.04 + 0.0006 0.04 + 0.0002 0.04 + 0.0002 0.04 + 0.0002
Axial runout deviation (µm+µm/mm measuring radius) * 0.02 + 0.0003 0.02 + 0.0001 0.02 + 0.0001 0.02 + 0.0001 0.02 + 0.0001 0.02 + 0.0001
Centering and tilting table
Centering and tilting table manual manual manual manual / auto- manual / auto- automatic
matic matic
Table diameter 160 160 160 285 285 285
Table load capacity, centered (N) 200 200 200 600 600 400
Speed (rpm) 50 Hz / 60 Hz 5 / 6 1– 6 0.2– 15 0.2– 15 0.2– 15 0.2– 15
Vertical straightness measuring untit, Z-axis
Positioning path (mm), Z axis 300, manual - - - - -
Z axis positioning manual - - - - -
Measuring path, motorized Z (mm) - 250 250 350 500 900
Straightness deviation / 100 mm measuring path (µm)**, Z axis - 0.4 0.15 0.15 0.15 0.15
Straightness deviation / total measuring path (µm)**, Z axis - 1 0.3 0.3 0.4 0.9
Parallelism deviation Z-/C axis in tracing direction, measuring path - 1 0.5 0.5 0.8 2
(µm)
Measuring speed (mm/s), Z axis - 0.5– 30 0.5– 30 0.1– 30 0.1– 30 0.1– 30
Positioning speed (mm/s), Z axis - 0.5– 50 0.5– 100 0.5 – 100 0.5 – 100 0.5 – 100
Horizontal straightness measuring unit, X-axis
Positioning path (mm), X axis 180, manual 150, motorized 150, motorized - - -
Measuring path, motorized X (mm) - - - 180 280 280
Straightness deviation / 100 mm measuring path (µm)**, X-axis - - - 0.4 0.5 0.5
Straightness deviation / total measuring path (µm)**, X axis - - - 0.8 1.5 1.5
Perpendicularity X/C axis, measuring path (µm) - - - 1 2 2
Positioning speed (mm/s), X axis - 0.5– 30 0.5– 30 0.5– 30 0.5– 30 0.5– 30
Measuring speed (mm/s), X axis - - - 0.5– 10 0.5– 10 0.5– 10
* Values as maximum deviation from LSC reference circle, filter 15 undulations/revolution.
** All values in accordance with DIN ISO 1101 at 20°C ±1°C in a vibration-neutral environment, filter 15 undulations/revolution LSC or 2.5 mm LSS, 5 rpm or 5 mm/s and standard
probe arm with ball diameter 3 mm. Proof at the standard using error separation techniques. Given the number of different options available, only a few machines are described
here by way of example. Technical data for “your” MMQ is available from Mahr on request.

For more information, please visit our website: www.mahr.com

MarForm | Form Measuring Instruments 563
