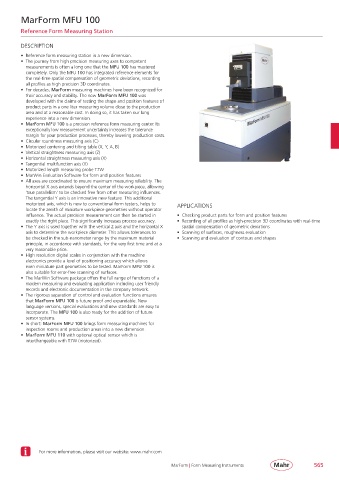

MarForm MFU 100

Reference Form Measuring Station

DESCRIPTION

• Reference form measuring station in a new dimension.
• The journey from high precision measuring axes to competent
measurements is often a long one that the MFU 100 has mastered
completely. Only the MFU 100 has integrated reference elements for
the real-time spatial compensation of geometric deviations, recording
all profiles as high precision 3D coordinates.
• For decades, MarForm measuring machines have been recognized for
their accuracy and stability. The new MarForm MFU 100 was
developed with the claims of testing the shape and position features of
product parts in a one liter measuring volume close to the production
area and at a reasonable cost. In doing so, it has taken our long
experience into a new dimension.
• MarForm MFU 100 is a precision reference form measuring center. Its
exceptionally low measurement uncertainty increases the tolerance
margin for your production processes, thereby lowering production costs.
• Circular roundness measuring axis (C)
• Motorized centering and tilting table (X, Y, A, B)
• Vertical straightness measuring axis (Z)
• Horizontal straightness measuring axis (X)
• Tangential multifunction axis (Y)
• Motorized length measuring probe T7W
• MarWin Evaluation Software for form and position features
• All axes are coordinated to ensure maximum measuring reliability. The
horizontal X axis extends beyond the center of the workpiece, allowing
‘true parallelism’ to be checked free from other measuring influences.
The tangential Y axis is an innovative new feature. This additional
motorized axis, which is new to conventional form testers, helps to APPLICATIONS
locate the zenith of miniature workpiece geometries without operator
influence. The actual precision measurement can then be started in • Checking product parts for form and position features
exactly the right place. This significantly increases process accuracy. • Recording of all profiles as high-precision 3D coordinates with real-time
• The Y axis is used together with the vertical Z axis and the horizontal X spatial compensation of geometric deviations
axis to determine the workpiece diameter. This allows tolerances to • Scanning of surfaces, roughness evaluation
be checked in the sub-nanometer range by the maximum material • Scanning and evaluation of contours and shapes
principle, in accordance with standards, for the very first time and at a
very reasonable price.
• High resolution digital scales in conjunction with the machine
electronics provide a level of positioning accuracy which allows
even miniature part geometries to be tested. MarForm MFU 100 is
also suitable for error-free scanning of surfaces.
• The MarWin Software package offers the full range of functions of a
modern measuring and evaluating application including user friendly
records and electronic documentation in the company network.
• The rigorous separation of control and evaluation functions ensures
that MarForm MFU 100 is future proof and expandable. New
language versions, special evaluations and new standards are easy to
incorporate. The MFU 100 is also ready for the addition of future
sensor systems.
• In short: MarForm MFU 100 brings form measuring machines for
inspection rooms and production areas into a new dimension.
• MarForm MFU 110 with optional optical sensor which is
interchangeable with T7W (motorized).

For more information, please visit our website: www.mahr.com
