P. 564

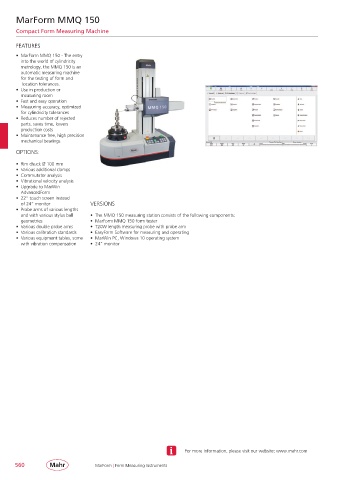

MarForm MMQ 150
Compact Form Measuring Machine
FEATURES
• MarForm MMQ 150 - The entry
into the world of cylindricity
metrology, the MMQ 150 is an
automatic measuring machine
for the testing of form and
location tolerances.
• Use in production or
measuring room
• Fast and easy operation
• Measuring accuracy, optimized
for cylindricity tolerances
• Reduces number of rejected
parts, saves time, lowers
production costs
• Maintenance free, high precision
mechanical bearings
OPTIONS:
• Rim chuck Ø 100 mm
• Various additional clamps
• Commutator analysis
• Vibrational velocity analysis
• Upgrade to MarWin
AdvancedForm
• 22” touch screen instead
of 24” monitor VERSIONS
• Probe arms of various lengths
and with various stylus ball • The MMQ 150 measuring station consists of the following components:
geometries • MarForm MMQ 150 form tester
• Various double probe arms • T20W length measuring probe with probe arm
• Various calibration standards • EasyForm Software for measuring and operating
• Various equipment tables, some • MarWin PC, Windows 10 operating system
with vibration compensation • 24” monitor
For more information, please visit our website: www.mahr.com
560 MarForm | Form Measuring Instruments
