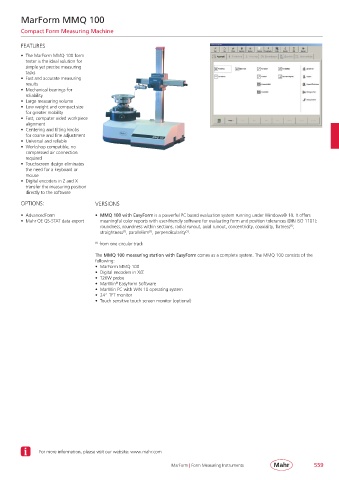

MarForm MMQ 100

Compact Form Measuring Machine

FEATURES

• The MarForm MMQ 100 form
tester is the ideal solution for
simple yet precise measuring
tasks
• Fast and accurate measuring
results
• Mechanical bearings for
reliability
• Large measuring volume
• Low weight and compact size
for greater mobility
• Fast, computer aided workpiece
alignment
• Centering and tilting knobs
for coarse and fine adjustment
• Universal and reliable
• Workshop compatible, no
compressed air connection
required
• Touchscreen design eliminates
the need for a keyboard or
mouse
• Digital encoders in Z and X
transfer the measuring position
directly to the software
OPTIONS: VERSIONS

• AdvancedForm • MMQ 100 with EasyForm is a powerful PC based evaluation system running under Windows® 10. It offers
• Mahr QE QS-STAT data export meaningful color reports with user-friendly software for evaluating form and position tolerances (DIN ISO 1101):
roundness, roundness within sections, radial runout, axial runout, concentricity, coaxiality, flatness ,
(1)
(1)
straightness , parallelism , perpendicularity .
(1)
(1)
(1) from one circular track
The MMQ 100 measuring station with EasyForm comes as a complete system. The MMQ 100 consists of the
following:
• MarForm MMQ 100
• Digital encoders in X/Z
• T20W probe
®
• MarWin EasyForm Software
• MarWin PC with WIN 10 operating system
• 24” TFT monitor
• Touch sensitive touch screen monitor (optional)

For more information, please visit our website: www.mahr.com
