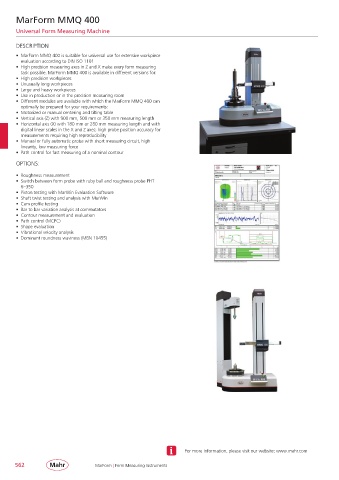

MarForm MMQ 400

Universal Form Measuring Machine

DESCRIPTION

• MarForm MMQ 400 is suitable for universal use for extensive workpiece
evaluation according to DIN ISO 1101
• High precision measuring axes in Z and X make every form measuring
task possible. MarForm MMQ 400 is available in different versions for:
• High precision workpieces
• Unusually long workpieces
• Large and heavy workpieces
• Use in production or in the precision measuring room
• Different modules are available with which the MarForm MMQ 400 can
optimally be prepared for your requirements:
• Motorized or manual centering and tilting table
• Vertical axis (Z) with 900 mm, 500 mm or 350 mm measuring length
• Horizontal axis (X) with 180 mm or 280 mm measuring length and with
digital linear scales in the X and Z axes; high probe position accuracy for
measurements requiring high reproducibility
• Manual or fully automatic probe with short measuring circuit, high
linearity, low measuring force
• Path control for fast measuring of a nominal contour
OPTIONS:

• Roughness measurement
• Switch between form probe with ruby ball and roughness probe PHT
6– 350
• Piston testing with MarWin Evaluation Software
• Shaft twist testing and analysis with MarWin
• Cam profile testing
• Bar to bar variation analysis at commutators
• Contour measurement and evaluation
• Path control (MCPC)
• Shape evaluation
• Vibrational velocity analysis
• Dominant roundness waviness (MBN 10455)

For more information, please visit our website: www.mahr.com
