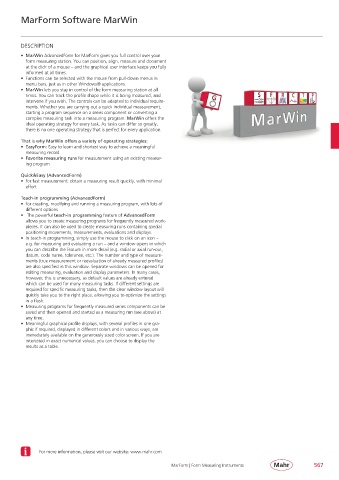

MarForm Software MarWin

DESCRIPTION

• MarWin AdvancedForm for MarForm gives you full control over your
form measuring station. You can position, align, measure and document
at the click of a mouse – and the graphical user interface keeps you fully
informed at all times.
• Functions can be selected with the mouse from pull-down menus in
menu bars, just as in other Windows® applications.
• MarWin lets you stay in control of the form measuring station at all
times. You can track the profile shape while it is being measured, and
intervene if you wish. The controls can be adapted to individual require-
ments. Whether you are carrying out a quick individual measurement,
starting a program sequence on a series component or converting a
complex measuring task into a measuring program: MarWin offers the
ideal operating strategy for every task. As tasks can differ so greatly,
there is no one operating strategy that is perfect for every application.
That is why MarWin offers a variety of operating strategies:
• EasyForm: Easy to learn and shortest way to achieve a meaningful
measuring record
• Favorite measuring runs for measurement using an existing measur-
ing program

Quick&Easy (AdvancedForm)
• for fast measurement; obtain a measuring result quickly, with minimal
effort

Teach-in programming (AdvancedForm)
• for creating, modifying and running a measuring program, with lots of
different options
• The powerful teach-in programming feature of AdvancedForm
allows you to create measuring programs for frequently measured work-
pieces. It can also be used to create measuring runs containing special
positioning movements, measurements, evaluations and displays.
• In teach-in programming, simply use the mouse to click on an icon –
e.g. for measuring and evaluating a run – and a window opens in which
you can describe the feature in more detail (e.g. radial or axial run-out,
datum, code name, tolerance, etc.). The number and type of measure-
ments (true measurement or reevaluation of already measured profiles)
are also specified in this window. Separate windows can be opened for
editing measuring, evaluation and display parameters. In many cases,
however, this is unnecessary, as default values are already entered
which can be used for many measuring tasks. If different settings are
required for specific measuring tasks, then the clear window layout will
quickly take you to the right place, allowing you to optimize the settings
in a flash.
• Measuring programs for frequently measured series components can be
saved and then opened and started as a measuring run (see above) at
any time.
• Meaningful graphical profile displays, with several profiles in one gra-
phic if required, displayed in different colors and in various ways, are
immediately available on the generously sized color screen. If you are
interested in exact numerical values, you can choose to display the
results as a table.

For more information, please visit our website: www.mahr.com

MarForm | Form Measuring Instruments 567
