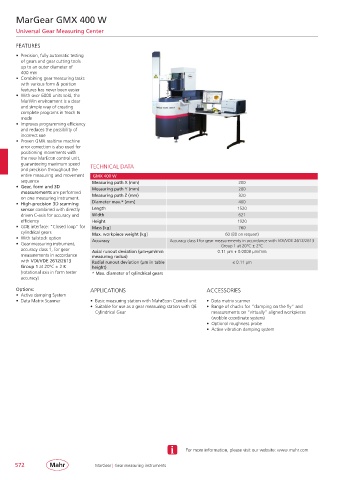

MarGear GMX 400 W

Universal Gear Measuring Center

FEATURES

• Precision, fully automatic testing
of gears and gear cutting tools
up to an outer diameter of
400 mm
• Combining gear measuring tasks
with various form & position
features has never been easier
• With over 6000 units sold, the
MarWin environment is a clear
and simple way of creating
complete programs in Teach In
mode
• Improves programming efficiency
and reduces the possibility of
incorrect use
• Proven GMX realtime machine
error correction is also used for
positioning movements with
the new MarEcon control unit,
guaranteeing maximum speed TECHNICAL DATA
and precision throughout the
entire measuring and movement GMX 400 W
sequence Measuring path X (mm) 200
• Gear, form and 3D Measuring path Y (mm) 200
measurements are performed Measuring path Z (mm) 320
on one measuring instrument.
• High-precision 3D scanning Diameter max.* [mm] 400
sensor combined with directly Length 1520
driven C-axis for accuracy and Width 621
efficiency Height 1920
• GDE interface: “Closed loop” for Mass [kg] 760
cylindrical gears Max. workpiece weight [kg] 60 (80 on request)
• With tailstock option Accuracy Accuracy class I for gear measurements in accordance with VDI/VDE 2612/2613
• Gear measuring instrument, Group 1 at 20°C ± 2°C
accuracy class 1, for gear Axial runout deviation (µm+µm/mm 0.11 µm + 0.0008 µm/mm
measurements in accordance measuring radius)
with VDI/VDE 2612/2613 Radial runout deviation (µm in table ≤ 0.11 µm
Group 1 at 20°C ± 2 K height)
(rotational axis in form tester * Max. diameter of cylindrical gears
accuracy)

Options: APPLICATIONS ACCESSORIES
• Active damping System
• Data Matrix Scanner • Basic measuring station with MahrEcon Control unit • Data matrix scanner
• Suitable for use as a gear measuring station with QE • Range of chucks for “clamping on the fly” and
Cylindrical Gear measurements on “virtually” aligned workpieces
(wobble coordinate system)
• Optional roughness probe
• Active vibration damping system

For more information, please visit our website: www.mahr.com
