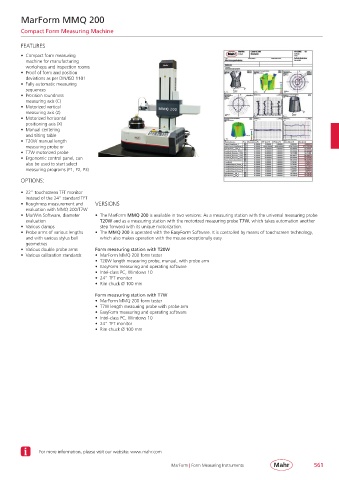

MarForm MMQ 200

Compact Form Measuring Machine

FEATURES

• Compact form measuring
machine for manufacturing
workshops and inspection rooms
• Proof of form and position
deviations as per DIN/ISO 1101
• Fully automatic measuring
sequences
• Precision roundness
measuring axis (C)
• Motorized vertical
measuring axis (Z)
• Motorized horizontal
positioning axis (X)
• Manual centering
and tilting table
• T20W manual length
measuring probe or
• T7W motorized probe
• Ergonomic control panel, can
also be used to start select
measuring programs (P1, P2, P3)
OPTIONS:

• 22” touchscreen TFT monitor
instead of the 24” standard TFT
• Roughness measurement and VERSIONS
evaluation with MMQ 200/T7W
• MarWin Software, diameter • The MarForm MMQ 200 is available in two versions: As a measuring station with the universal measuring probe
evaluation T20W and as a measuring station with the motorized measuring probe T7W, which takes automation another
• Various clamps step forward with its unique motorization.
• Probe arms of various lengths • The MMQ 200 is operated with the EasyForm Software. It is controlled by means of touchscreen technology,
and with various stylus ball which also makes operation with the mouse exceptionally easy.
geometries
• Various double probe arms Form measuring station with T20W
• Various calibration standards • MarForm MMQ 200 form tester
• T20W length measuring probe, manual, with probe arm
• EasyForm measuring and operating software
• Intel-class PC, Windows 10
• 24” TFT monitor
• Rim chuck Ø 100 mm
Form measuring station with T7W
• MarForm MMQ 200 form tester
• T7W length measuring probe with probe arm
• EasyForm measuring and operating software
• Intel-class PC, Windows 10
• 24” TFT monitor
• Rim chuck Ø 100 mm

For more information, please visit our website: www.mahr.com

MarForm | Form Measuring Instruments 561
