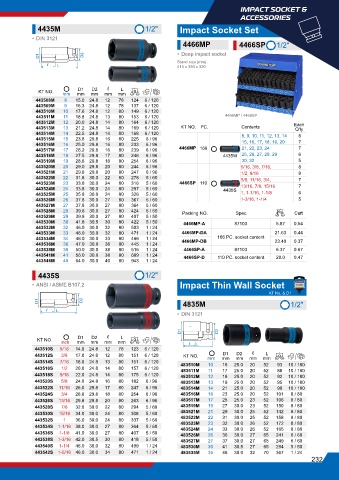

Page 273 - 蓝带金统立KINGTONY2025年样本

IMPACT SOCKET &
ACCESSORIES
4435M 1/2" Impact Socket Set

• DIN 3121
4466MP 4466SP 1/2"

D1 D2 • Deep impact socket
Stand size (mm) :
l L 415 x 336 x 320

L
D2
ℓ
D1
KT NO. mm mm mm mm mm g
443508M 8 15.0 24.8 12 78 124 6 / 120
443509M 9 16.3 24.8 12 78 137 6 / 120
443510M 10 17.6 24.8 12 80 149 6 / 120
443511M 11 18.8 24.8 13 80 153 6 / 120 4466MP / 4466SP
443512M 12 20.0 24.8 14 80 164 6 / 120 Each
443513M 13 21.2 24.8 14 80 169 6 / 120 KT NO. PC. Contents Q'ty
443514M 14 22.5 24.8 14 80 168 6 / 120 8, 9, 10, 11, 12, 13, 14 8
443515M 15 23.8 29.8 16 80 225 6 / 96 15, 16, 17, 18, 19, 20 7
443516M 16 25.0 29.8 16 80 233 6 / 96
443517M 17 26.2 29.8 16 80 239 6 / 96 4466MP 166 21, 22, 23, 24 7
443518M 18 27.5 29.8 17 80 246 6 / 96 4435M 25, 26, 27, 28, 29 6
443519M 19 28.8 29.8 18 80 254 6 / 96 30, 32 5
443520M 20 29.0 29.8 20 80 244 6 / 96 5/16, 3/8, 7/16, 8
443521M 21 29.8 29.8 20 80 247 6 / 96 1/2, 9/16 8
443522M 22 31.8 30.0 22 80 278 5 / 60 5/8, 11/16, 3/4, 7
443523M 23 33.8 30.0 24 80 316 5 / 60 4466SP 110
443524M 24 33.8 30.0 24 80 297 5 / 60 4435S 13/16, 7/8, 15/16 7
443525M 25 35.8 30.0 24 80 326 5 / 60 1, 1-1/16, 1-1/8 6
443526M 26 37.8 30.0 27 80 367 5 / 60 1-3/16, 1-1/4 5
443527M 27 37.8 30.0 27 80 364 5 / 60
443528M 28 39.8 30.0 27 80 424 5 / 50 Packing NO. Spec. Kg Cuft
443529M 29 39.8 30.0 27 80 407 5 / 50
443530M 30 41.8 30.5 30 80 422 5 / 50 4466MP-A 87103 5.87 0.54
443532M 32 46.0 30.0 32 80 503 1 / 24
443533M 33 46.0 30.0 32 80 471 1 / 24 4466MP-DA 21.63 0.44
443534M 34 46.0 30.0 33 80 466 1 / 24 4466MP-DB 166 PC. socket content 23.40 0.37
443536M 36 47.0 30.0 36 80 445 1 / 24
443538M 38 50.0 30.0 38 80 515 1 / 24 4466SP-A 87103 6.37 0.67
443541M 41 56.0 30.0 38 80 689 1 / 24 4466SP-D 110 PC. socket content 28.0 0.47
443546M 46 64.0 30.0 40 80 943 1 / 24

4435S 1/2"

• ANSI / ASME B107.2 Impact Thin Wall Socket
KT No. & D1
D1 D2 4835M 1/2"
l L
• DIN 3121

D1 D2
L
D2
D1
ℓ
KT NO. inch mm mm mm mm g
443510S 5/16 14.0 24.8 12 78 123 6 / 120 l L
D2
D1
L
ℓ
443512S 3/8 17.0 24.8 12 80 151 6 / 120 KT NO. mm mm mm mm mm g
443514S 7/16 18.0 24.8 13 80 151 6 / 120 483510M 10 16 25.0 20 52 93 10 / 180
443516S 1/2 20.0 24.8 14 80 157 6 / 120 483511M 11 17 25.0 20 52 88 10 / 180
443518S 9/16 22.0 24.8 14 80 175 6 / 120 483512M 12 18 25.0 20 52 92 10 / 180
443520S 5/8 24.0 24.8 16 80 182 6 / 96 483513M 13 19 25.0 20 52 95 10 / 180
443522S 11/16 26.0 29.8 17 80 247 6 / 96 483514M 14 21 25.0 20 52 99 10 / 180
443524S 3/4 28.8 29.8 18 80 254 6 / 96 483516M 16 23 25.0 20 52 101 8 / 80
443526S 13/16 29.8 29.8 20 80 263 6 / 96 483517M 17 25 25.0 23 52 106 8 / 80
443528S 7/8 32.0 30.0 22 80 294 5 / 60 483519M 19 27 30.0 23 52 150 8 / 80
443530S 15/16 34.0 30.0 24 80 308 5 / 60 483521M 21 29 30.0 25 52 142 8 / 80
443532S 1 36.0 30.0 24 80 337 5 / 60 483522M 22 31 30.0 25 52 158 8 / 80
443534S 1-1/16 38.0 30.0 27 80 364 5 / 60 483523M 23 32 30.0 26 52 172 8 / 80
8 / 80
26
52
165
24
483524M
33
30.0
443536S 1-1/8 41.0 30.0 27 80 407 5 / 50 483526M 26 36 30.0 27 65 241 6 / 60
443538S 1-3/16 42.0 30.5 30 80 418 5 / 50 483527M 27 37 30.0 27 65 249 6 / 60
443540S 1-1/4 46.0 30.0 32 80 499 1 / 24 483530M 30 41 30.5 27 65 294 5 / 50
443542S 1-5/16 46.0 30.0 34 80 471 1 / 24 483535M 35 46 30.0 32 70 367 1 / 24
