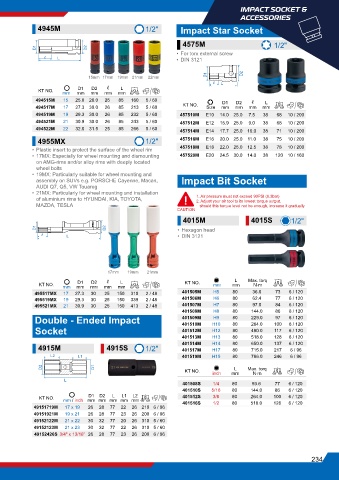

Page 275 - 蓝带金统立KINGTONY2025年样本

IMPACT SOCKET &
ACCESSORIES
4945M 1/2" Impact Star Socket

4575M 1/2"
D1 D2
• For torx external screw
l L • DIN 3121

15mm 17mm 19mm 21mm 22mm D1 D2
l L
L
D2
D1
ℓ
KT NO. mm mm mm mm mm g
494515M 15 25.0 26.0 25 85 160 5 / 60 D1 D2 ℓ L
494517M 17 27.3 30.0 26 85 213 5 / 60 KT NO. Size mm mm mm mm g
494519M 19 29.3 30.0 26 85 232 5 / 60 457510M E10 14.0 25.0 7.5 38 68 10 / 200
494521M 21 30.9 30.0 26 85 243 5 / 60 457512M E12 15.9 25.0 9.0 38 68 10 / 200
494522M 22 32.0 31.5 25 85 266 5 / 60 457514M E14 17.7 25.0 10.0 38 71 10 / 200
4955MX 1/2" 457516M E16 20.0 25.0 11.0 38 75 10 / 200
• Plastic insert to protect the surface of the wheel rim 457518M E18 22.0 25.0 12.5 38 78 10 / 200
• 17MX: Especially for wheel mounting and dismounting 457520M E20 24.5 30.0 14.0 38 120 10 / 160
on AMG-rims and/or alloy rims with deeply located
wheel bolts
• 19MX: Particularly suitable for wheel mounting and
assembly on SUVs e.g. PORSCHE Cayenne, Macan, Impact Bit Socket
AUDI Q7, Q5, VW Touareg
• 21MX: Particularly for wheel mounting and installation
of aluminium rims to HYUNDAI, KIA, TOYOTA, 1. Air pressure must not exceed 90PSI (6.3bar)
2. Adjust your air tool to its lowest torque output,
MAZDA, TESLA should this torque level not be enough, increase it gradually
CAUTION
4015M 4015S 1/2"
D1 D2 • Hexagon head
l L • DIN 3121

17mm 19mm 21mm
L
L
D2
D1
ℓ
KT NO. mm mm mm mm mm g KT NO. mm mm Max. torq g
N‧m
495517MX 17 27.3 30 25 150 310 2 / 48 401505M H5 80 36.0 73 6 / 120
495519MX 19 29.3 30 25 150 339 2 / 48 401506M H6 80 62.4 77 6 / 120
495521MX 21 30.9 30 25 150 413 2 / 48 401507M H7 80 97.0 84 6 / 120
401508M H8 80 144.0 86 6 / 120
Double - Ended Impact 401509M H10 80 229.0 100 6 / 120
H9
97
6 / 120
264.0
80
401510M
Socket 401512M H12 80 480.0 117 6 / 120
401513M H13 80 518.0 128 6 / 120
4915M 4915S 1/2" 401514M H14 80 650.0 137 6 / 120
H17
6 / 96
80
715.0
401517M
217
L2 L1 401519M H19 80 786.0 246 6 / 96
D2 D1 KT NO. inch mm Max. torq g
L
N‧m
L
401508S 1/4 80 93.6 77 6 / 120
401510S 5/16 80 144.0 86 6 / 120
D2
D1
L
L2
L1
KT NO. mm / inch mm mm mm mm mm g 401512S 3/8 80 264.0 100 6 / 120
49151719M 17 x 19 26 28 77 22 26 210 6 / 96 401516S 1/2 80 518.0 126 6 / 120
49151921M 19 x 21 26 28 77 23 26 200 6 / 96
49152122M 21 x 22 30 32 77 20 26 310 5 / 60
49152123M 21 x 23 30 32 77 22 26 310 5 / 60
49152426S 3/4" x 13/16" 26 28 77 23 26 200 6 / 96
234
