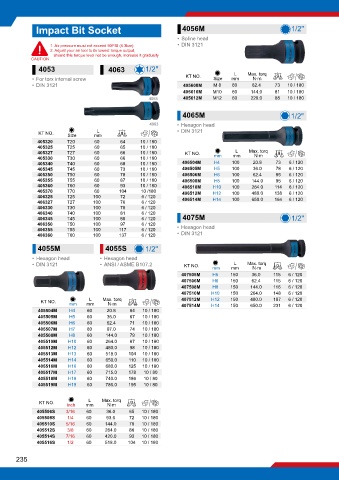

Page 276 - 蓝带金统立KINGTONY2025年样本

Impact Bit Socket 4056M 1/2"

• Spline head
1. Air pressure must not exceed 90PSI (6.3bar) • DIN 3121
2. Adjust your air tool to its lowest torque output,
should this torque level not be enough, increase it gradually
CAUTION
4053 4063 1/2"
L
• For torx internal screw KT NO. Size mm Max. torq g
N‧m
• DIN 3121 405608M M 8 60 62.4 73 10 / 180
405610M M10 60 144.0 81 10 / 180
4053 405612M M12 60 229.0 88 10 / 180

4065M 1/2"

4063 • Hexagon head
L
KT NO. Size mm g • DIN 3121
405320 T20 60 64 10 / 180
405325 T25 60 65 10 / 180
L
405327 T27 60 66 10 / 180 KT NO. mm mm Max. torq g
405330 T30 60 66 10 / 180 N‧m
405340 T40 60 68 10 / 180 406504M H4 100 20.8 73 6 / 120
405345 T45 60 73 10 / 180 406505M H5 100 36.0 78 6 / 120
405350 T50 60 78 10 / 180 406506M H6 100 62.4 85 6 / 120
405355 T55 60 87 10 / 180 406508M H8 100 144.0 95 6 / 120
405360 T60 60 93 10 / 180 406510M H10 100 264.0 114 6 / 120
405370 T70 60 104 10 /180 406512M H12 100 480.0 138 6 / 120
406325 T25 100 72 6 / 120 406514M H14 100 650.0 164 6 / 120
406327 T27 100 76 6 / 120
406330 T30 100 78 6 / 120
406340 T40 100 81 6 / 120
406345 T45 100 88 6 / 120 4075M 1/2"
406350 T50 100 97 6 / 120
406355 T55 100 117 6 / 120 • Hexagon head
406360 T60 100 137 6 / 120 • DIN 3121
4055M 4055S 1/2"

• Hexagon head • Hexagon head
L
• DIN 3121 • ANSI / ASME B107.2 KT NO. mm mm Max. torq g
N‧m
407505M H5 150 36.0 115 6 / 120
407506M H6 150 62.4 115 6 / 120
407508M H8 150 144.0 116 6 / 120
407510M H10 150 264.0 148 6 / 120
L
KT NO. mm mm Max. torq g 407512M H12 150 480.0 187 6 / 120
N‧m
150
6 / 120
231
H14
407514M
650.0
405504M H4 60 20.8 64 10 / 180
405505M H5 60 36.0 67 10 / 180
405506M H6 60 62.4 71 10 / 180
405507M H7 60 97.0 74 10 / 180
405508M H8 60 144.0 79 10 / 180
405510M H10 60 264.0 87 10 / 180
405512M H12 60 480.0 98 10 / 180
405513M H13 60 518.0 104 10 / 180
405514M H14 60 650.0 110 10 / 180
405516M H16 60 680.0 125 10 / 180
405517M H17 60 715.0 178 10 / 80
405518M H18 60 740.0 186 10 / 80
405519M H19 60 786.0 195 10 / 80
L
KT NO. inch mm Max. torq g
N‧m
405506S 3/16 60 36.0 65 10 / 180
405508S 1/4 60 93.6 72 10 / 180
405510S 5/16 60 144.0 78 10 / 180
405512S 3/8 60 264.0 86 10 / 180
405514S 7/16 60 420.0 93 10 / 180
405516S 1/2 60 518.0 104 10 / 180

235
