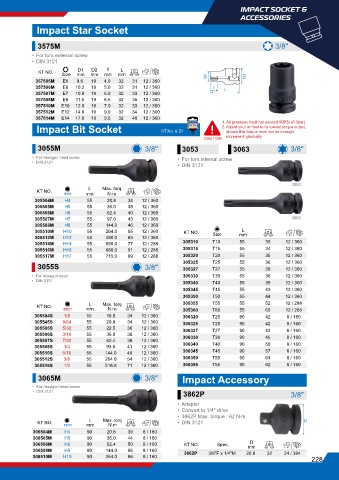

P. 269
IMPACT SOCKET &
ACCESSORIES
Impact Star Socket
3575M 3/8"
• For torx external screw
• DIN 3121
ℓ
L
D1
D2
KT NO. Size mm mm mm mm g
357505M E5 9.6 19 4.0 32 31 12 / 360 D1 D2
357506M E6 10.2 19 5.0 32 31 12 / 360 l L
357507M E7 10.8 19 6.0 32 33 12 / 360
357508M E8 11.5 19 6.5 32 35 12 / 360
357510M E10 12.0 19 7.0 32 33 12 / 360
357512M E12 14.0 19 9.0 32 34 12 / 360
357514M E14 17.0 19 9.5 32 40 12 / 360 1. Air pressure must not exceed 90PSI (6.3bar)
Impact Bit Socket KT No. & D1 2. Adjust your air tool to its lowest torque output,
should this torque level not be enough,
CAUTION increase it gradually
3055M 3/8" 3053 3063 3/8"
• For hexagon head screw • For torx internal screw
• DIN 3121
• DIN 3121
3053
L Max. torq
KT NO. mm mm N‧m g
305504M H4 55 20.8 34 12 / 360
305505M H5 55 36.0 38 12 / 360
305506M H6 55 62.4 40 12 / 360
305507M H7 55 97.0 43 12 / 360 3063
305508M H8 55 144.0 46 12 / 360
305510M H10 55 264.0 55 12 / 360 KT NO. Size L g
305512M H12 55 480.0 65 12 / 360 mm
305514M H14 55 650.0 77 12 / 288 305310 T10 55 35 12 / 360
305516M H16 55 680.0 91 12 / 288 305315 T15 55 34 12 / 360
305517M H17 55 715.0 99 12 / 288 305320 T20 55 35 12 / 360
3055S 3/8" 305325 T25 55 36 12 / 360
12 / 360
36
55
305327
T27
• For hexagon head 305330 T30 55 36 12 / 360
• DIN 3121 305340 T40 55 39 12 / 360
305345 T45 55 43 12 / 360
305350 T50 55 44 12 / 360
L
KT NO. inch mm Max. torq g 305355 T55 55 52 12 / 288
N‧m
T60
305360
60
55
12 / 288
305504S 1/8 55 18.8 34 12 / 360 306320 T20 90 42 8 / 160
305545S 9/64 55 20.8 34 12 / 360 306325 T25 90 42 8 / 160
305505S 5/32 55 22.5 36 12 / 360 306327 T27 90 43 8 / 160
305506S 3/16 55 36.0 36 12 / 360 306330 T30 90 45 8 / 160
305507S 7/32 55 62.4 38 12 / 360
305508S 1/4 55 93.6 41 12 / 360 306340 T40 90 50 8 / 160
305510S 5/16 55 144.0 46 12 / 360 306345 T45 90 57 8 / 160
305512S 3/8 55 264.0 54 12 / 360 306350 T50 90 64 8 / 160
305516S 1/2 55 518.0 71 12 / 360 306355 T55 90 82 8 / 160
3065M 3/8" Impact Accessory
• For hexagon head screw
• DIN 3121 3862P 3/8"
• Adapter
• Convert to 1/4" drive
• 3862P Max. torque : 62 N‧m
L
KT NO. mm mm Max. torq g • DIN 3121 D
N‧m
306504M H4 90 20.8 39 8 / 160
306505M H5 90 36.0 44 8 / 160
D
306506M H6 90 62.4 50 8 / 160 KT NO. Spec. mm g
306508M H8 90 144.0 66 8 / 160 3862P 3/8"F x 1/4"M 20.8 32 24 / 384
306510M H10 90 264.0 86 8 / 160
228
