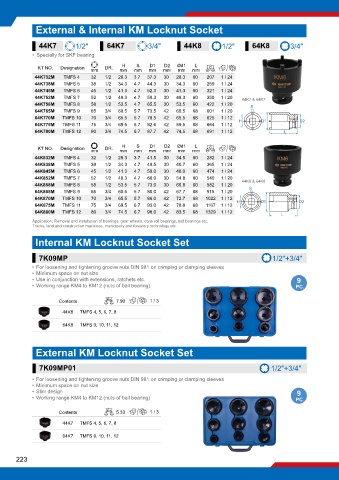

External & Internal KM Locknut Socket

44K7 1/2" 64K7 3/4" 44K8 1/2" 64K8 3/4"
• Specially for SKF bearing

H
D1
S
D2
L
KT NO. Designation mm DR. mm mm mm mm Ød1 mm g
mm
44K732M TMFS 4 32 1/2 28.3 3.7 37.3 30 28.3 60 207 1 / 24
44K738M TMFS 5 38 1/2 34.3 4.7 44.3 30 34.3 60 259 1 / 24
44K745M TMFS 6 45 1/2 41.3 4.7 52.3 30 41.3 60 321 1 / 24
44K752M TMFS 7 52 1/2 48.3 4.7 59.3 30 48.3 60 350 1 / 20 44K7 & 64K7
44K758M TMFS 8 58 1/2 53.5 4.7 65.5 30 53.5 60 422 1 / 20 S
64K765M TMFS 9 65 3/4 60.5 5.7 73.5 42 60.5 68 601 1 / 20
64K770M TMFS 10 70 3/4 65.5 5.7 78.5 42 65.5 68 625 1 / 12 D1 D2
64K775M TMFS 11 75 3/4 69.5 6.7 82.6 42 59.5 68 664 1 / 12 H
64K780M TMFS 12 80 3/4 74.5 6.7 87.7 42 74.5 68 691 1 / 12 L
L
D2
D1
H
S
KT NO. Designation mm DR. mm mm mm mm Ød1 mm g
mm
44K832M TMFS 4 32 1/2 28.3 3.7 41.5 30 34.5 60 282 1 / 24
44K838M TMFS 5 38 1/2 34.3 4.7 49.5 30 40.7 60 365 1 / 24
44K845M TMFS 6 45 1/2 41.3 4.7 59.0 30 48.0 60 474 1 / 24
44K852M TMFS 7 52 1/2 48.3 4.7 66.0 30 54.8 60 540 1 / 20
44K858M TMFS 8 58 1/2 53.5 5.7 73.0 30 60.8 60 582 1 / 20 44K8 & 64K8
64K865M TMFS 9 65 3/4 60.5 5.7 80.0 42 67.7 68 915 1 / 20 S
64K870M TMFS 10 70 3/4 65.5 5.7 86.0 42 72.7 68 1022 1 / 12
64K875M TMFS 11 75 3/4 69.5 6.7 93.0 42 78.8 68 1167 1 / 12 H D1 D2
64K880M TMFS 12 80 3/4 74.5 6.7 98.0 42 83.5 68 1329 1 / 12
L
Application: Removal and installation of bearings, gear wheels, cone roll bearings, ball bearings etc.
Trucks, land and construction machines, municipally and forestery technology etc.

Internal KM Locknut Socket Set

7K09MP 1/2"+3/4"
• For loosening and tightening groove nuts DIN 981 on crimping or clamping sleeves
• Minimum space on nut size
• Use in conjunction with extensions, ratchets etc. 9
• Working range KM4 to KM12 (nuts of ball bearing) PC.

Contents Kg 7.90 1 / 3

44K8 TMFS 4, 5, 6, 7, 8
64K8 TMFS 9, 10, 11, 12

External KM Locknut Socket Set

7K09MP01 1/2"+3/4"
• For loosening and tightening groove nuts DIN 981 on crimping or clamping sleeves
• Minimum space on nut size
• Slim design 9
• Working range KM4 to KM12 (nuts of ball bearing) PC.

Contents Kg 5.33 1 / 3
44K7 TMFS 4, 5, 6, 7, 8

64K7 TMFS 9, 10, 11, 12
