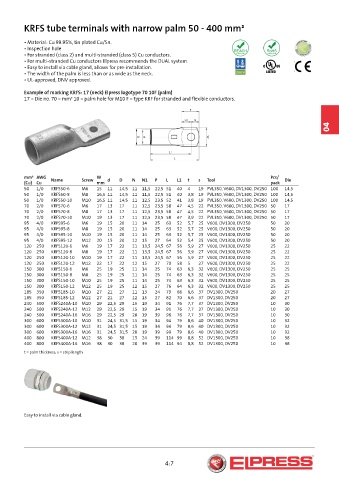

KRFS tube terminals with narrow palm 50 - 400 mm²

• Material: Cu 99.95%, tin plated Cu/Sn.
• Inspection hole
• For stranded (class 2) and multi-stranded (class 5) Cu conductors.
• For multi-stranded Cu conductors Elpress recommends the DUAL system.
• Easy to install via cable gland, allows for pre-installation.
• The width of the palm is less than or as wide as the neck.
• UL-approved, DNV approved.

Example of marking KRFS: 17 (neck) Elpress logotype 70 10F (palm)
17 = Die no. 70 = mm² 10 = palm hole for M10 F = type KRF for stranded and flexible conductors.

04

mm² AWG Name Screw W d D N N1 P L L1 t s Tool Pcs/ Die
(Cu) Cu mm pack
50 1/0 KRFS50-6 M6 15 11 14,5 11 11,5 22,5 51 40 4 19 PVL350, V600, DV1300, DV250 100 14,5
50 1/0 KRFS50-8 M8 16,5 11 14,5 11 11,5 22,5 51 40 3,8 19 PVL350, V600, DV1300, DV250 100 14,5
50 1/0 KRFS50-10 M10 16,5 11 14,5 11 12,5 23,5 52 41 3,8 19 PVL350, V600, DV1300, DV250 100 14,5
70 2/0 KRFS70-6 M6 17 13 17 11 12,5 23,5 58 47 4,5 22 PVL350, V600, DV1300, DV250 50 17
70 2/0 KRFS70-8 M8 17 13 17 11 12,5 23,5 58 47 4,5 22 PVL350, V600, DV1300, DV250 50 17
70 2/0 KRFS70-10 M10 19 13 17 11 12,5 23,5 58 47 3,9 22 PVL350, V600, DV1300, DV250 50 17
95 4/0 KRFS95-6 M6 19 15 20 11 14 25 63 52 5,7 25 V600, DV1300, DV250 50 20
95 4/0 KRFS95-8 M8 19 15 20 11 14 25 63 52 5,7 25 V600, DV1300, DV250 50 20
95 4/0 KRFS95-10 M10 19 15 20 11 14 25 63 52 5,7 25 V600, DV1300, DV250 50 20
95 4/0 KRFS95-12 M12 20 15 20 12 15 27 64 52 5,4 25 V600, DV1300, DV250 50 20
120 250 KRFS120-6 M6 19 17 22 11 13,5 24,5 67 56 5,9 27 V600, DV1300, DV250 25 22
120 250 KRFS120-8 M8 19 17 22 11 13,5 24,5 67 56 5,9 27 V600, DV1300, DV250 25 22
120 250 KRFS120-10 M10 19 17 22 11 13,5 24,5 67 56 5,9 27 V600, DV1300, DV250 25 22
120 250 KRFS120-12 M12 22 17 22 12 15 27 70 58 5 27 V600, DV1300, DV250 25 22
150 300 KRFS150-6 M6 25 19 25 11 14 25 74 63 6,3 32 V600, DV1300, DV250 25 25
150 300 KRFS150-8 M8 25 19 25 11 14 25 74 63 6,3 32 V600, DV1300, DV250 25 25
150 300 KRFS150-10 M10 25 19 25 11 14 25 74 63 6,3 32 V600, DV1300, DV250 25 25
150 300 KRFS150-12 M12 25 19 25 12 15 27 76 64 6,3 32 V600, DV1300, DV250 25 25
185 350 KRFS185-10 M10 27 21 27 11 13 24 79 68 6,6 37 DV1300, DV250 20 27
185 350 KRFS185-12 M12 27 21 27 12 15 27 82 70 6,6 37 DV1300, DV250 20 27
240 500 KRFS240A-10 M10 29 22,5 29 15 19 34 91 76 7,7 37 DV1300, DV250 10 30
240 500 KRFS240A-12 M12 29 22,5 29 15 19 34 91 76 7,7 37 DV1300, DV250 10 30
240 500 KRFS240A-16 M16 29 22,5 29 20 19 39 96 76 7,7 37 DV1300, DV250 10 30
300 600 KRFS300A-10 M10 31 24,5 31,5 15 19 34 94 79 8,6 40 DV1300, DV250 10 32
300 600 KRFS300A-12 M12 31 24,5 31,5 15 19 34 94 79 8,6 40 DV1300, DV250 10 32
300 600 KRFS300A-16 M16 31 24,5 31,5 20 19 39 99 79 8,6 40 DV1300, DV250 10 32
400 800 KRFS400A-12 M12 38 30 38 15 24 39 114 99 8,8 52 DV1300, DV250 10 38
400 800 KRFS400A-16 M16 38 30 38 20 39 39 114 94 8,8 52 DV1300, DV250 10 38
t = palm thickness, s = strip length

Easy to install via cable gland.

4:7
