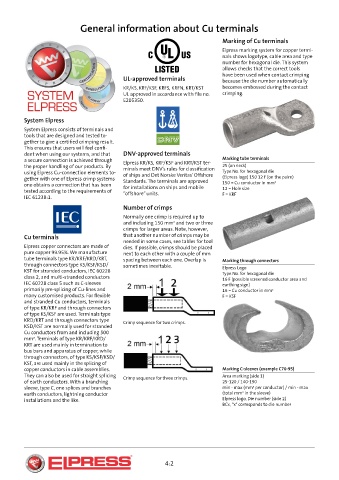

General information about Cu terminals

Marking of Cu terminals

Elpress marking system for copper termi-
nals shows logotype, cable area and type
number for hexagonal die. This system
allows checks that the correct tools
have been used when contact crimping
UL-approved terminals because the die number automatically
KR/KS, KRF/KSF, KRFS, KRFN, KRT/KST becomes embossed during the contact
UL approved in accordance with file no. crimping.
E205350.

System Elpress
System Elpress consists of terminals and
tools that are designed and tested to-
gether to give a certified crimping result.
This ensures that users will feel confi-
dent when using our systems, and that DNV-approved terminals
a secure connection is achieved through Elpress KR/KS, KRF/KSF and KRT/KST ter- Marking tube terminals
the proper handling of our products. By minals meet DNV’s rules for classification 25 (on neck)
using Elpress Cu-connection elements to- of ships and Det Norske Veritas’ Offshore Type No. for hexagonal die
gether with one of Elpress crimp systems Standards. The terminals are approved (Elpress logo) 150 12 F (on the palm)
one obtains a connection that has been for installations on ships and mobile 150 = Cu conductor in mm²
tested according to the requirements of “offshore” units. 12 = Hole size
IEC 61238:1. F = KRF
Number of crimps
Normally one crimp is required up to
and including 150 mm² and two or three
crimps for larger areas. Note, however,
Cu terminals that another number of crimps may be
needed in some cases, see tables for tool
Elpress copper connectors are made of dies. If possible, crimps should be placed
pure copper 99.95%. We manufacture next to each other with a couple of mm
tube terminals type KR/KRF/KRD/KRT, spacing between each one. Overlap is Marking through connectors
through connectors type KS/KSF/KSD/ sometimes inevitable.
KST for stranded conductors, IEC 60228 Elpress Logo
Type No. for hexagonal die
class 2, and multi-stranded conductors 16 F (possible screened conductor area and
IEC 60228 class 5 such as C-sleeves earthing sign)
primarily pre-splicing of Cu-lines and 16 = Cu conductor in mm²
many customised products. For flexible F = KSF

and stranded Cu conductors, terminals
of type KR/KRF and through connectors
of type KS/KSF are used. Terminals type
KRD/KRT and through connectors type Crimp sequence for two crimps.
KSD/KST are normally used for stranded
Cu conductors from and including 500
mm². Terminals of type KR/KRF/KRD/
KRT are used mainly in termination to
bus bars and apparatus of copper, while
through connectors, of type KS/KSF/KSD/
KST, are used mainly in the splicing of

copper conductors in cable assemblies. Marking C-sleeves (example C70-95)
They can also be used for straight splicing Crimp sequence for three crimps. Area marking (side 1)
of earth conductors. With a branching 25-120 / 140-190
sleeve, type C, one splices and branches min - max (mm² per conductor) / min - max
earth conductors, lightning conductor (total mm² in the sleeve)
installations and the like. Elpress logo, Die number (side 2)
BCx, "x" corresponds to die number
