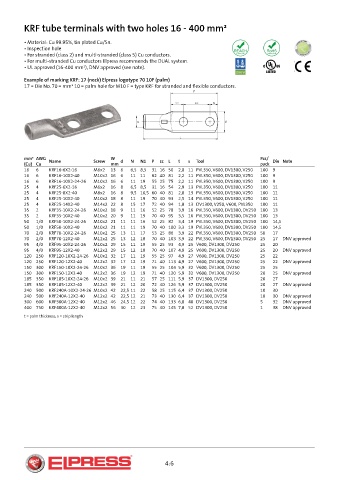

KRF tube terminals with two holes 16 - 400 mm²

• Material: Cu 99.95%, tin plated Cu/Sn.
• Inspection hole
• For stranded (class 2) and multi-stranded (class 5) Cu conductors.
• For multi-stranded Cu conductors Elpress recommends the DUAL system.
• UL approved (16-400 mm²), DNV approved (see note).

Example of marking KRF: 17 (neck) Elpress logotype 70 10F (palm)
17 = Die No. 70 = mm² 10 = palm hole for M10 F = type KRF for stranded and flexible conductors.

mm² AWG Name Screw W d N N1 P cc L t s Tool Pcs/ Die Note
(Cu) Cu mm pack
16 6 KRF16-6X2-16 M6x2 13 6 6,5 8,5 31 16 50 2,8 11 PVL350, V600, DV1300, V250 100 9
16 6 KRF16-10X2-40 M10x2 16 6 11 11 62 40 81 2,2 11 PVL350, V600, DV1300, V250 100 9
16 6 KRF16-10X2-24-26 M10x2 16 6 11 19 55 25 75 2,2 11 PVL350, V600, DV1300, V250 100 9
25 4 KRF25-6X2-16 M6x2 16 8 6,5 8,5 31 16 54 2,9 13 PVL350, V600, DV1300, V250 100 11
25 4 KRF25-8X2-40 M8x2 16 8 9,5 10,5 60 40 81 2,8 13 PVL350, V600, DV1300, V250 100 11
25 4 KRF25-10X2-40 M10x2 18 8 11 19 70 40 93 2,5 14 PVL350, V600, DV1300, V250 100 11
25 4 KRF25-14X2-40 M14x2 22 8 15 17 72 40 94 1,8 13 DV1300, V250, V600, PVL350 100 11
35 2 KRF35-10X2-24-26 M10x2 18 9 11 16 52 25 78 3,9 16 PVL350, V600, DV1300, DV250 100 13
35 2 KRF35-10X2-40 M10x2 20 9 11 19 70 40 95 3,5 16 PVL350, V600, DV1300, DV250 100 13
50 1/0 KRF50-10X2-24-26 M10x2 21 11 11 16 52 25 82 3,4 19 PVL350, V600, DV1300, DV250 100 14,5
50 1/0 KRF50-10X2-40 M10x2 21 11 11 19 70 40 100 3,3 19 PVL350, V600, DV1300, DV250 100 14,5
70 2/0 KRF70-10X2-24-26 M10x2 25 13 11 17 53 25 86 3,9 22 PVL350, V600, DV1300, DV250 50 17
70 2/0 KRF70-12X2-40 M12x2 25 13 12 18 70 40 103 3,9 22 PVL350, V600, DV1300, DV250 25 17 DNV approved
95 4/0 KRF95-10X2-24-26 M10x2 29 15 11 19 55 25 93 4,9 25 V600, DV1300, DV250 25 20
95 4/0 KRF95-12X2-40 M12x2 29 15 12 18 70 40 107 4,9 25 V600, DV1300, DV250 25 20 DNV approved
120 250 KRF120-10X2-24-26 M10x2 32 17 11 19 55 25 97 4,9 27 V600, DV1300, DV250 25 22
120 250 KRF120-12X2-40 M12x2 32 17 12 19 71 40 113 4,9 27 V600, DV1300, DV250 25 22 DNV approved
150 300 KRF150-10X2-24-26 M10x2 36 19 11 19 55 25 104 5,9 32 V600, DV1300, DV250 25 25
150 300 KRF150-12X2-40 M12x2 36 19 12 19 71 40 120 5,9 32 V600, DV1300, DV250 20 25 DNV approved
185 350 KRF185-10X2-24-26 M10x2 39 21 11 21 57 25 111 5,9 37 DV1300, DV250 20 27
185 350 KRF185-12X2-40 M12x2 39 21 12 20 72 40 126 5,9 37 DV1300, DV250 20 27 DNV approved
240 500 KRF240A-10X2-24-26 M10x2 42 22,5 11 22 58 25 115 6,4 37 DV1300, DV250 10 30
240 500 KRF240A-12X2-40 M12x2 42 22,5 12 21 73 40 130 6,4 37 DV1300, DV250 10 30 DNV approved
300 600 KRF300A-12X2-40 M12x2 46 24,5 12 22 74 40 133 6,8 40 DV1300, DV250 5 32 DNV approved
400 750 KRF400A-12X2-40 M12x2 56 30 12 23 75 40 145 7,8 52 DV1300, DV250 1 38 DNV approved
t = palm thickness, s = strip length
