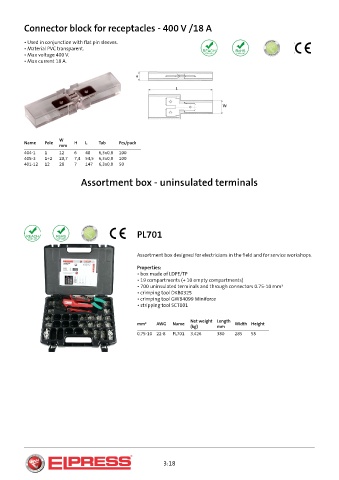

Connector block for receptacles - 400 V /18 A

• Used in conjunction with flat pin sleeves.
• Material PVC transparent.
• Max voltage 400 V.
• Max current 18 A.

W
Name Pole H L Tab Pcs/pack
mm
404-1 1 12 6 48 6,3x0,8 100
405-3 1+2 20,7 7,4 54,5 6,3x0,8 100
401-12 12 28 7 147 6,3x0,8 50

Assortment box - uninsulated terminals

PL701

Assortment box designed for electricians in the field and for service workshops.

Properties:
• box made of LDPE/TP
• 19 compartments (+ 10 empty compartments)
• 700 uninsulated terminals and through connectors 0.75-10 mm²
• crimping tool DKB0325
• crimping tool GWB4099 Miniforce
• stripping tool SCT001

Net weight Length
mm² AWG Name Width Height
(kg) mm
0,75-10 22-8 PL701 3,426 380 285 55

3:18
