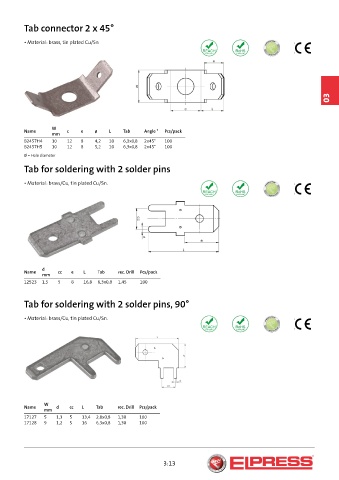

P. 61
Tab connector 2 x 45°
• Material: brass, tin plated Cu/Sn
03
W
Name c e ø L Tab Angle ° Pcs/pack
mm
B2457H4 10 12 8 4,2 10 6,3x0,8 2x45° 100
B2457H5 10 12 8 5,2 10 6,3x0,8 2x45° 100
Ø = Hole diameter
Tab for soldering with 2 solder pins
• Material: brass/Cu, tin plated Cu/Sn.
d
Name cc e L Tab rec. Drill Pcs/pack
mm
12523 1,5 5 8 16,8 6,3x0,8 1,45 100
Tab for soldering with 2 solder pins, 90°
• Material: brass/Cu, tin plated Cu/Sn.
W
Name d cc L Tab rec. Drill Pcs/pack
mm
17127 5 1,3 5 13,4 2,8x0,8 1,30 100
17128 9 1,2 5 16 6,3x0,8 1,30 100
3:13
