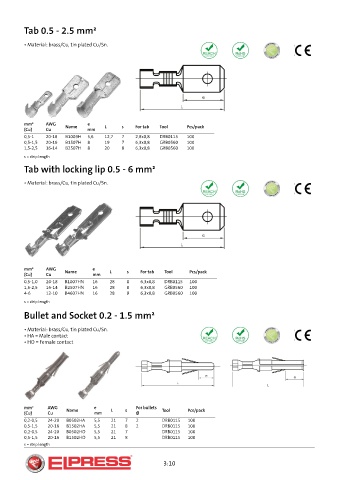

P. 58
Tab 0.5 - 2.5 mm²
• Material: brass/Cu, tin plated Cu/Sn.
mm² AWG Name e L s For tab Tool Pcs/pack
(Cu) Cu mm
0,5-1 20-18 B1003H 5,6 12,7 7 2,8x0,8 DRB0115 100
0,5-1,5 20-16 B1507H 8 19 7 6,3x0,8 GRB0560 100
1,5-2,5 16-14 B2507H 8 20 8 6,3x0,8 GRB0560 100
s = strip length
Tab with locking lip 0.5 - 6 mm²
• Material: brass/Cu, tin plated Cu/Sn.
mm² AWG Name e L s For tab Tool Pcs/pack
(Cu) Cu mm
0,5-1,0 20-18 B1007HN 16 28 8 6,3x0,8 DRB0115 100
1,5-2,5 16-14 B2507HN 16 28 8 6,3x0,8 GRB0560 100
4-6 12-10 B4607HN 16 28 9 6,3x0,8 GRB0560 100
s = strip length
Bullet and Socket 0.2 - 1.5 mm²
• Material: brass/Cu, tin plated Cu/Sn.
• HA = Male contact
• HO = Female contact
mm² AWG Name e L s For bullets Tool Pcs/pack
(Cu) Cu mm Ø
0,2-0,5 24-20 B0502HA 5,5 21 7 2 DRB0115 100
0,5-1,5 20-16 B1502HA 5,5 21 8 2 DRB0115 100
0,2-0,5 24-20 B0502HO 5,5 21 7 DRB0115 100
0,5-1,5 20-16 B1502HO 5,5 21 8 DRB0115 100
s = strip length
3:10
