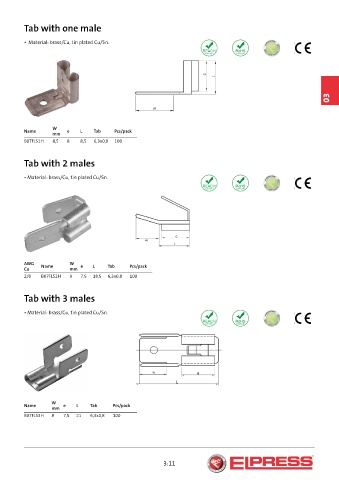

Tab 0.5 - 2.5 mm² Tab with one male

• Material: brass/Cu, tin plated Cu/Sn.
• Material: brass/Cu, tin plated Cu/Sn.

03

mm² AWG Name e L s For tab Tool Pcs/pack
(Cu) Cu mm Name W e L Tab Pcs/pack
0,5-1 20-18 B1003H 5,6 12,7 7 2,8x0,8 DRB0115 100 mm
0,5-1,5 20-16 B1507H 8 19 7 6,3x0,8 GRB0560 100 B07FLS1H 8,5 8 8,5 6,3x0,8 100
1,5-2,5 16-14 B2507H 8 20 8 6,3x0,8 GRB0560 100
s = strip length
Tab with 2 males

Tab with locking lip 0.5 - 6 mm²
• Material: brass/Cu, tin plated Cu/Sn.
• Material: brass/Cu, tin plated Cu/Sn.

AWG W
mm² AWG Name e L s For tab Tool Pcs/pack Cu Name mm e L Tab Pcs/pack
(Cu) Cu mm 2/0 B07FLS2H 9 7,5 18,5 6,3x0,8 100
0,5-1,0 20-18 B1007HN 16 28 8 6,3x0,8 DRB0115 100
1,5-2,5 16-14 B2507HN 16 28 8 6,3x0,8 GRB0560 100
4-6 12-10 B4607HN 16 28 9 6,3x0,8 GRB0560 100
s = strip length Tab with 3 males
Bullet and Socket 0.2 - 1.5 mm² • Material: brass/Cu, tin plated Cu/Sn.

• Material: brass/Cu, tin plated Cu/Sn.
• HA = Male contact
• HO = Female contact

W
Name e L Tab Pcs/pack
mm² AWG Name e L s For bullets Tool Pcs/pack mm
(Cu) Cu mm Ø
B07FLS3H 8 7,5 21 6,3x0,8 100
0,2-0,5 24-20 B0502HA 5,5 21 7 2 DRB0115 100
0,5-1,5 20-16 B1502HA 5,5 21 8 2 DRB0115 100
0,2-0,5 24-20 B0502HO 5,5 21 7 DRB0115 100
0,5-1,5 20-16 B1502HO 5,5 21 8 DRB0115 100
s = strip length

3:11
