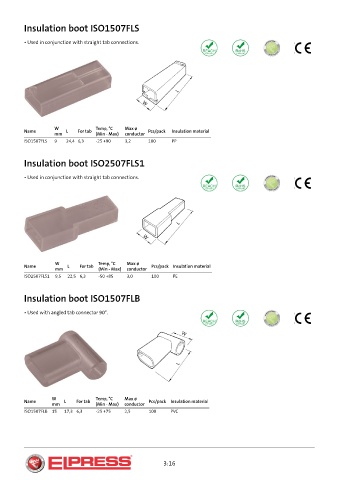

P. 64
Insulation boot ISO1507FLS
• Used in conjunction with straight tab connections.
W Temp, °C Max ø
Name L For tab Pcs/pack Insulation material
mm (Min - Max) conductor
ISO1507FLS 9 24,4 6,3 -25 +90 3,2 100 PP
Insulation boot ISO2507FLS1
• Used in conjunction with straight tab connections.
W Temp, °C Max ø
Name L For tab Pcs/pack Insulation material
mm (Min - Max) conductor
ISO2507FLS1 9,5 22,5 6,3 -50 +85 3,0 100 PE
Insulation boot ISO1507FLB
• Used with angled tab connector 90°.
W Temp, °C Max ø
Name L For tab Pcs/pack Insulation material
mm (Min - Max) conductor
ISO1507FLB 15 17,3 6,3 -25 +75 2,5 100 PVC
3:16
