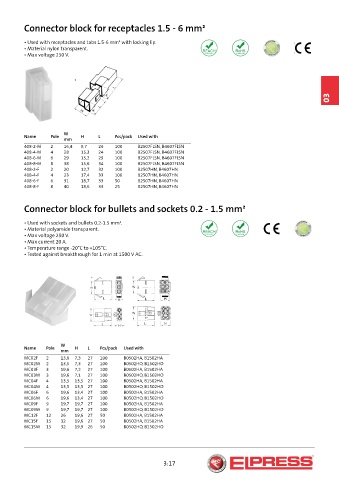

Connector block for receptacles 1.5 - 6 mm²

• Used with receptacles and tabs 1.5-6 mm² with locking lip.
• Material nylon transparent.
• Max voltage 250 V.

03

W
Name Pole H L Pcs/pack Used with
mm
408-2-M 2 16,4 9,7 24 100 B2507FLSN, B4607FLSN
408-4-M 4 28 15,3 24 100 B2507FLSN, B4607FLSN
408-6-M 6 29 15,2 29 100 B2507FLSN, B4607FLSN
408-8-M 8 38 15,6 34 100 B2507FLSN, B4607FLSN
408-2-F 2 20 12,7 32 100 B2507HN, B4607HN
408-4-F 4 23 17,4 33 100 B2507HN, B4607HN
408-6-F 6 31 18,7 33 50 B2507HN, B4607HN
408-8-F 8 40 18,6 33 25 B2507HN, B4607HN

Connector block for bullets and sockets 0.2 - 1.5 mm²

• Used with sockets and bullets 0.2-1.5 mm².
• Material polyamide transparent.
• Max voltage 250 V.
• Max current 20 A.
• Temperature range -20°C to +105°C.
• Tested against breakthrough for 1 min at 1500 V AC.

W
Name Pole H L Pcs/pack Used with
mm
MC02F 2 13,6 7,3 27 100 B0502HA, B1502HA
MC02M 2 13,5 7,3 27 100 B0502HO, B1502HO
MC03F 3 19,6 7,2 27 100 B0502HA, B1502HA
MC03M 3 19,6 7,1 27 100 B0502HO, B1502HO
MC04F 4 13,5 13,5 27 100 B0502HA, B1502HA
MC04M 4 13,5 13,5 27 100 B0502HO, B1502HO
MC06F 6 19,6 13,4 27 100 B0502HA, B1502HA
MC06M 6 19,6 13,4 27 100 B0502HO, B1502HO
MC09F 9 19,7 19,7 27 100 B0502HA, B1502HA
MC09M 9 19,7 19,7 27 100 B0502HO, B1502HO
MC12F 12 26 19,6 27 50 B0502HA, B1502HA
MC15F 15 32 19,6 27 50 B0502HA, B1502HA
MC15M 15 32 19,9 26 50 B0502HO, B1502HO

3:17
