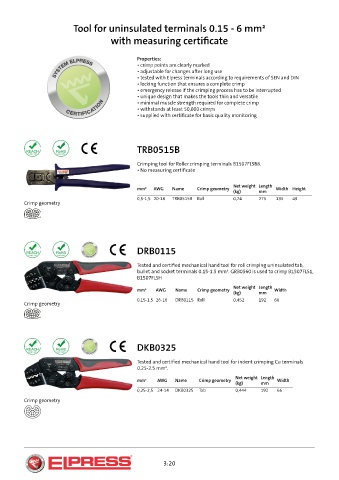

Tool for uninsulated terminals 0.15 - 6 mm²

with measuring certificate

Properties:
• crimp points are clearly marked
• adjustable for changes after long use
• tested with Elpress terminals according to requirements of SEN and DIN
• locking function that ensures a complete crimp
• emergency release if the crimping process has to be interrupted
• unique design that makes the tools thin and versatile
• minimal muscle strength required for complete crimp
• withstands at least 50,000 crimps
• supplied with certificate for basic quality monitoring

TRB0515B

Crimping tool for Roller crimping terminals B1507FLSB8.
• No measuring certificate

Net weight Length
mm² AWG Name Crimp geometry Width Height
(kg) mm
0,5-1,5 20-16 TRB0515B Roll 0,74 275 135 49
Crimp geometry

DRB0115

Tested and certified mechanical hand tool for roll crimping uninsulated tab,
bullet and socket terminals 0.15-1.5 mm². GRB0560 is used to crimp B1507FLS1,
B1507FLSH
Net weight Length
mm² AWG Name Crimp geometry Width
(kg) mm
0,15-1,5 26-16 DRB0115 Roll 0,452 192 66
Crimp geometry

DKB0325

Tested and certified mechanical hand tool for indent crimping Cu terminals
0.25-2.5 mm².
Net weight Length
mm² AWG Name Crimp geometry Width
(kg) mm
0,25-2,5 24-14 DKB0325 Tab 0,444 192 66
Crimp geometry

3:20
