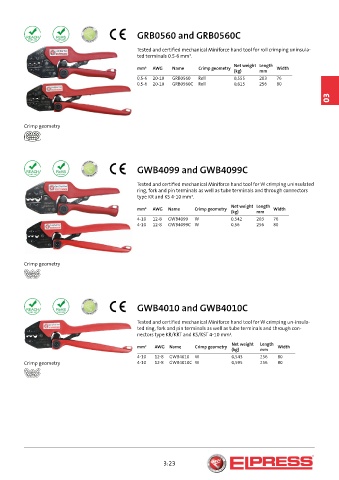

P. 71
GRB0560 and GRB0560C
Tested and certified mechanical Miniforce hand tool for roll crimping uninsula-
ted terminals 0.5-6 mm².
Net weight Length
mm² AWG Name Crimp geometry Width
(kg) mm
0,5-6 20-10 GRB0560 Roll 0,555 203 76
0,5-6 20-10 GRB0560C Roll 0,615 256 80
03
Crimp geometry
GWB4099 and GWB4099C
Tested and certified mechanical Miniforce hand tool for W crimping uninsulated
ring, fork and pin terminals as well as tube terminals and through connectors
type KR and KS 4-10 mm².
Net weight Length
mm² AWG Name Crimp geometry Width
(kg) mm
4-10 12-8 GWB4099 W 0,542 203 76
4-10 12-8 GWB4099C W 0,56 256 80
Crimp geometry
GWB4010 and GWB4010C
Tested and certified mechanical Miniforce hand tool for W crimping un-insula-
ted ring, fork and pin terminals as well as tube terminals and through con-
nectors type KR/KRT and KS/KST 4-10 mm².
Net weight Length
mm² AWG Name Crimp geometry Width
(kg) mm
4-10 12-8 GWB4010 W 0,543 256 80
Crimp geometry 4-10 12-8 GWB4010C W 0,595 256 80
3:23
