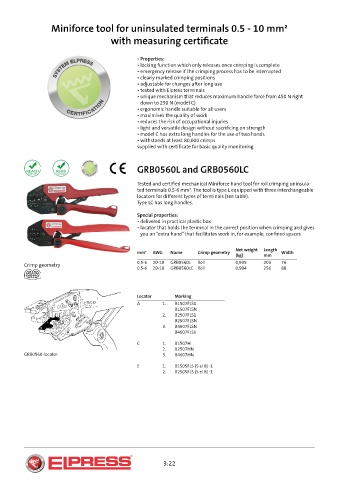

Miniforce tool for uninsulated terminals 0.5 - 10 mm²

with measuring certificate

• Properties:
• locking function which only releases once crimping is complete
• emergency release if the crimping process has to be interrupted
• clearly marked crimping positions
• adjustable for changes after long use
• tested with Elpress terminals
• unique mechanism that reduces maximum handle force from 450 N right
down to 250 N (model C)
• ergonomic handle suitable for all users
• maximises the quality of work
• reduces the risk of occupational injuries
• light and versatile design without sacrificing on strength
• model C has extra long handles for the use of two hands
• withstands at least 80,000 crimps
supplied with certificate for basic quality monitoring

GRB0560L and GRB0560LC

Tested and certified mechanical Miniforce hand tool for roll crimping uninsula-
ted terminals 0.5-6 mm². The tool is type L equipped with three interchangeable
locators for different types of terminals (see table).
Type LC has long handles.
Special properties:
• delivered in practical plastic box
• locator that holds the terminal in the correct position when crimping and gives
you an ”extra hand” that facilitates work in, for example, confined spaces

Net weight Length
mm² AWG Name Crimp geometry Width
(kg) mm
0,5-6 20-10 GRB0560L Roll 0,935 203 76
Crimp geometry
0,5-6 20-10 GRB0560LC Roll 0,994 256 80

Locator Marking
A 1. B1507FLS1
B1507FLSN
2. B2507FLS1
B2507FLSN
3. B4607FLSN
B4607FLS1

C 1. B1507H
2. B2507HN
GRB0560-locator 3. B4607HN

E 1. B1505FLS (5 el 8) -1
2. B2505FLS (5 el 8) -1

3:22
