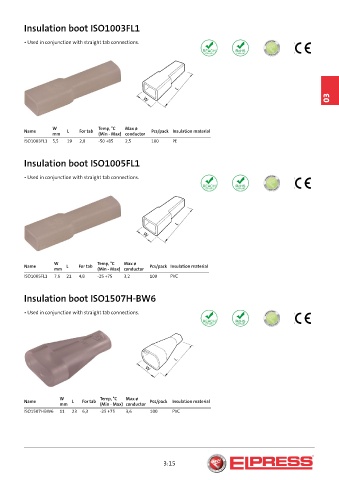

Insulation boot ISO1003FL1
• Used in conjunction with straight tab connections.
03
W Temp, °C Max ø
Name L For tab Pcs/pack Insulation material
mm (Min - Max) conductor
ISO1003FL1 5,5 19 2,8 -50 +85 2,5 100 PE
Insulation boot ISO1005FL1
• Used in conjunction with straight tab connections.
W Temp, °C Max ø
Name L For tab Pcs/pack Insulation material
mm (Min - Max) conductor
ISO1005FL1 7,6 21 4,8 -25 +75 3,2 100 PVC
Insulation boot ISO1507H-BW6
• Used in conjunction with straight tab connections.
W Temp, °C Max ø
Name L For tab Pcs/pack Insulation material
mm (Min - Max) conductor
ISO1507HBW6 11 23 6,3 -25 +75 3,6 100 PVC
3:15
