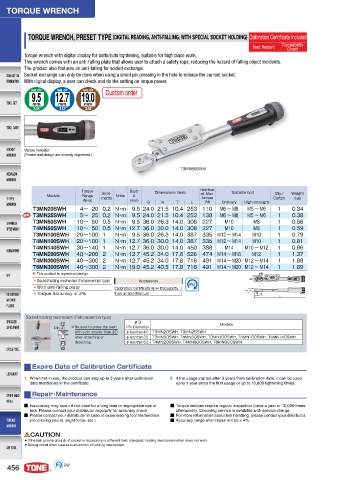

TORQUE WRENCH, PRESET TYPE (DIGITAL READING, ANTI-FALLING, WITH SPECIAL SOCKET HOLDING) Calibration Certificate Included

Test Report Traceability
Chart
Torque wrench with digital display for bolts/nuts tightening, suitable for high place work.
This wrench comes with an anti-falling plate that allows user to attach a safety rope, reducing the hazard of falling object incidents.
The product also features an anti-falling for socket exchange.
Socket exchange can only be done when using a small pin pressing in the hole to release the current socket.
With digital display, a user can check and do the setting on torque power.

9.5 12.7 19.0 Custom order
mm mm mm
3/8 1/2 3/4

Visible Indicator %JHJUBM EJTQMBZ QBSU
(Patent and design are already registered.)

T3MN50SWH

Torque Sq.dr Dimensions (mm) Hand force Suitable bolt
Qty./
Incre-
Models Range ments Units A at Max. Carton Weight
torque
(kg)
(N･m) (mm) B H T L (N) Ordinary High strength
T3MN20SWH 4～ 20 0.2 N・m 9.5 24.0 21.5 10.4 253 110 M6 ～ M8 M5 ～ M6 1 0.34
T3MN25SWH 5～ 25 0.2 N・m 9.5 24.0 21.5 10.4 253 138 M6 ～ M8 M5 ～ M6 1 0.38
T3MN50SWH 10～ 50 0.5 N・m 9.5 36.0 26.3 14.0 308 227 M10 M8 1 0.56
T4MN50SWH 10～ 50 0.5 N・m 12.7 36.0 30.0 14.0 308 227 M10 M8 1 0.59
T3MN100SWH 20～100 1 N・m 9.5 36.0 26.3 14.0 387 335 M12 ～ M14 M10 1 0.79
T4MN100SWH 20～100 1 N・m 12.7 36.0 30.0 14.0 387 335 M12 ～ M14 M10 1 0.81
T4MN140SWH 30～140 1 N・m 12.7 36.0 30.0 14.0 450 388 M14 M10 ～ M12 1 0.86
T4MN200SWH 40～200 2 N・m 12.7 45.2 34.0 17.8 526 474 M14 ～ M16 M12 1 1.37
T4MN300SWH 40～300 2 N・m 12.7 45.2 34.0 17.8 716 491 M14 ～ M20 M12 ～ M14 1 1.88
T6MN300SWH 40～300 2 N・m 19.0 45.2 40.5 17.8 716 491 M14 ～ M20 M12 ～ M14 1 1.89
※ This product is registered design. П %
● Socket holding mechanism (Fall prevention type) Accessory
● With anti-falling plate Calibration Certificate W/H Traceability 1
● Torque Accuracy ± 3% Instruction Manual 1

4PDLFU IPMEJOH NFDIBOJTN 'BMM QSFWFOUJPO UZQF
П% φD Models
1JO
ϐϯ ˞ #F TVSF UP QSFTT UIF QVTI Pin Diameter
XJUI B QJO TNBMMFS UIBO П% φ less than 4.0. T3MN20SWH, T3MN25SWH
XIFO BUUBDIJOH PS φ less than 3.5. T3MN50SWH, T4MN50SWH, T3MN100SWH, T4MN100SWH, T4MN140SWH
EFUBDIJOH φ less than 5.0. T4MN200SWH, T4MN300SWH, T6MN300SWH

Expire Date of Calibration Certificate

1. When not in use, the product can stay up to 3 years after calibration 2. If the usage started after 3 years from calibration date, it can be used
date mentioned in the certificate. up to 1 year since the first usage or up to 10,000 tightening times.
Repair･Maintenance

■ Inaccuracy may occur if not used for a long time or impropriate use of ■ Torque devices require regular inspection (once a year or 10,000 times
tool. Please contact your distributor regularly for accuracy check. afterwards). Checking service is available with service charge.
■ Please contact your distributor in case of experiencing tool malfunction ■ For more information about tool handling, please contact your distributor.
(no clicking sound, slight force, etc.) ■ Accuracy range after repair will be ± 4%.
CAUTION
● If the ball groove of sq.dr of socket or accessory is different from standard, holding mechanism often does not work.
● Strong shock often causes malfunction of holding mechanism.
