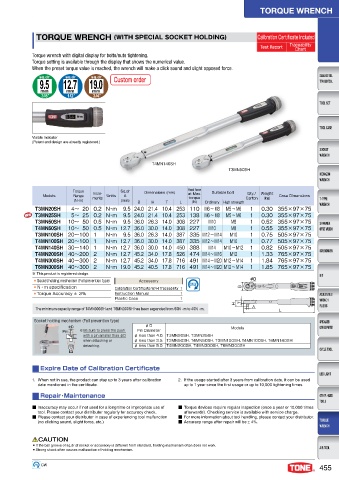

TORQUE WRENCH (WITH SPECIAL SOCKET HOLDING) Calibration Certificate Included

Test Report Traceability
Chart
Torque wrench with digital display for bolts/nuts tightening.
Torque setting is available through the display that shows the numerical value.
When the preset torque value is reached, the wrench will make a click sound and slight opposed force.

9.5 12.7 19.0 Custom order
mm mm mm
3/8 1/2 3/4

Visible Indicator %JHJUBM EJTQMBZ QBSU
(Patent and design are already registered.)

T4MN140SH
T3MN50SH

Torque Sq.dr Dimensions (mm) Hand force Suitable bolt
Qty./
Incre-
Models Range ments Units A at Max. Carton Weight Case Dimensions
torque
(kg)
(N･m) (mm) B H T L (N) Ordinary High strength
T3MN20SH 4～ 20 0.2 N・m 9.5 24.0 21.4 10.4 253 110 M6 ～ M8 M5 ～ M6 1 0.30 355×97×75
T3MN25SH 5～ 25 0.2 N・m 9.5 24.0 21.4 10.4 253 138 M6 ～ M8 M5 ～ M6 1 0.30 355×97×75
T3MN50SH 10～ 50 0.5 N・m 9.5 36.0 26.3 14.0 308 227 M10 M8 1 0.52 355×97×75
T4MN50SH 10～ 50 0.5 N・m 12.7 36.0 30.0 14.0 308 227 M10 M8 1 0.55 355×97×75
T3MN100SH 20～100 1 N・m 9.5 36.0 26.3 14.0 387 335 M12～M14 M10 1 0.75 505×97×75
T4MN100SH 20～100 1 N・m 12.7 36.0 30.0 14.0 387 335 M12～M14 M10 1 0.77 505×97×75
T4MN140SH 30～140 1 N・m 12.7 36.0 30.0 14.0 450 388 M14 M10～M12 1 0.82 505×97×75
T4MN200SH 40～200 2 N・m 12.7 45.2 34.0 17.8 526 474 M14～M16 M12 1 1.33 765×97×75
T4MN300SH 40～300 2 N・m 12.7 45.2 34.0 17.8 716 491 M14～M20 M12～M14 1 1.84 765×97×75
T6MN300SH 40～300 2 N・m 19.0 45.2 40.5 17.8 716 491 M14～M20 M12～M14 1 1.85 765×97×75
※ This product is registered design.
● Socket holding mechanism (Fall prevention type) Accessory П %
● N・m specification Calibration Certificate W/H Traceability 1
● Torque Accuracy ± 3% Instruction Manual 1
Plastic Case 1
The minimum capacity range of T4MN300SH and T6MN300SH has been expanded from 60N · m to 40N · m.

4PDLFU IPMEJOH NFDIBOJTN 'BMM QSFWFOUJPO UZQF
П% φD Models
1JO
ϐϯ ˞ #F TVSF UP QSFTT UIF QVTI Pin Diameter
XJUI B QJO TNBMMFS UIBO П% φ less than 4.0. T3MN20SH, T3MN25SH
XIFO BUUBDIJOH PS φ less than 3.5. T3MN50SH, T4MN50SH, T3MN100SH, T4MN100SH, T4MN140SH
EFUBDIJOH φ less than 5.0. T4MN200SH, T4MN300SH, T6MN300SH

Expire Date of Calibration Certificate

1. When not in use, the product can stay up to 3 years after calibration 2. If the usage started after 3 years from calibration date, it can be used
date mentioned in the certificate. up to 1 year since the first usage or up to 10,000 tightening times.
Repair･Maintenance

■ Inaccuracy may occur if not used for a long time or impropriate use of ■ Torque devices require regular inspection (once a year or 10,000 times
tool. Please contact your distributor regularly for accuracy check. afterwards). Checking service is available with service charge.
■ Please contact your distributor in case of experiencing tool malfunction ■ For more information about tool handling, please contact your distributor.
(no clicking sound, slight force, etc.) ■ Accuracy range after repair will be ± 4%.

CAUTION
● If the ball groove of sq.dr of socket or accessory is different from standard, holding mechanism often does not work.
● Strong shock often causes malfunction of holding mechanism.
