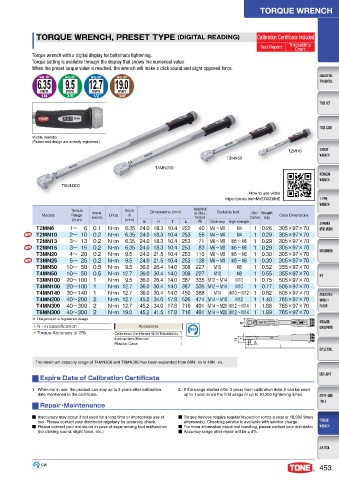

TORQUE WRENCH, PRESET TYPE (DIGITAL READING) Calibration Certificate Included

Test Report Traceability
Chart
Torque wrench with a digital display for bolts/nuts tightening.
Torque setting is available through the display that shows the numerical value.
When the preset torque value is reached, the wrench will make a click sound and slight opposed force.

6.35 9.5 12.7 19.0
mm mm mm mm
1/4 3/8 1/2 3/4

Visible Indicator σδλϧදࣔ෦෼
(Patent and design are already registered.)
T2MN6
T3MN50
T4MN200

T6MN300
How to use video
https://youtu.be/nMxEO0ZiBbE

Torque Sq.dr Dimensions (mm) Hand force Suitable bolt
Qty./ Weight
Incre-
Models Range ments Units A at Max. Carton (kg) Case Dimensions
torque
(N･m) (mm) B H T L (N) Ordinary High strength
T2MN6 1～ 6 0.1 N・m 6.35 24.0 18.3 10.4 222 40 M4 ～ M6 M4 1 0.26 305×97×70
T2MN10 2～ 10 0.2 N・m 6.35 24.0 18.3 10.4 253 55 M4 ～ M6 M4 1 0.29 305×97×70
T2MN13 3～ 13 0.2 N・m 6.35 24.0 18.3 10.4 253 71 M6 ～ M8 M5 ～ M6 1 0.29 305×97×70
T2MN15 3～ 15 0.2 N・m 6.35 24.0 18.3 10.4 253 83 M6 ～ M8 M5 ～ M6 1 0.29 305×97×70
T3MN20 4～ 20 0.2 N・m 9.5 24.0 21.5 10.4 253 110 M6 ～ M8 M5 ～ M6 1 0.30 305×97×70
T3MN25 5～ 25 0.2 N・m 9.5 24.0 21.5 10.4 253 138 M6 ～ M8 M5 ～ M6 1 0.30 305×97×70
T3MN50 10～ 50 0.5 N・m 9.5 36.0 26.4 14.0 308 227 M10 M8 1 0.52 355×97×70
T4MN50 10～ 50 0.5 N・m 12.7 36.0 30.4 14.0 308 227 M10 M8 1 0.55 355×97×70
T3MN100 20～100 1 N・m 9.5 36.0 26.4 14.0 387 335 M12～M14 M10 1 0.75 505×97×70
T4MN100 20～100 1 N・m 12.7 36.0 30.4 14.0 387 335 M12～M14 M10 1 0.77 505×97×70
T4MN140 30～140 1 N・m 12.7 36.0 30.4 14.0 450 388 M14 M10～M12 1 0.82 505×97×70
T4MN200 40～200 2 N・m 12.7 45.2 34.0 17.8 526 474 M14～M16 M12 1 1.40 765×97×70
T4MN300 40～300 2 N・m 12.7 45.2 34.0 17.8 716 491 M14～M20 M12～M14 1 1.88 765×97×70
T6MN300 40～300 2 N・m 19.0 45.2 41.5 17.8 716 491 M14～M20 M12～M14 1 1.89 765×97×70
※ This product is registered design.
● N・m specification Accessory
● Torque Accuracy ± 3% Calibration Certificate W/H Traceability 1
Instruction Manual 1
Plastic Case 1

The minimum capacity range of T4MN300 and T6MN300 has been expanded from 60N · m to 40N · m.

Expire Date of Calibration Certificate

1. When not in use, the product can stay up to 3 years after calibration 2. If the usage started after 3 years from calibration date, it can be used
date mentioned in the certificate. up to 1 year since the first usage or up to 10,000 tightening times.
Repair･Maintenance

■ Inaccuracy may occur if not used for a long time or impropriate use of ■ Torque devices require regular inspection (once a year or 10,000 times
tool. Please contact your distributor regularly for accuracy check. afterwards). Checking service is available with service charge.
■ Please contact your distributor in case of experiencing tool malfunction ■ For more information about tool handling, please contact your distributor.
(no clicking sound, slight force, etc.) ■ Accuracy range after repair will be ± 4%.
