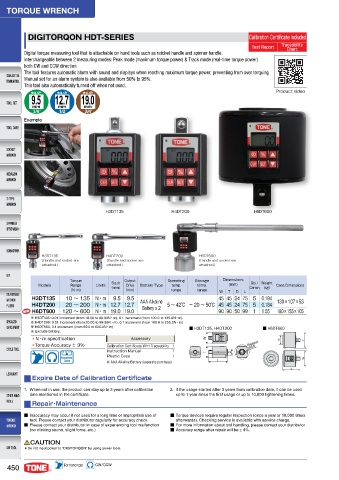

DIGITORQON HDT-SERIES Calibration Certificate Included

Test Report Traceability
Chart
Digital torque measuring tool that is attachable on hand tools such as ratchet handle and spinner handle.
Interchangeable between 2 measuring modes: Peak mode (maximum torque power) & Track mode (real-time torque power)
both CW and CCW direction
The tool features automatic alarm with sound and displays when reaching maximum torque power, preventing from over torquing
Manual set for an alarm system is also available from 50% to 95%.
This tool also automatically turned off when not used.
Product video
9.5 12.7 19.0

mm mm mm
3/8 1/2 3/4
Example

H3DT135 H4DT200 H6DT600

H3DT135 H4DT200 H6DT600
(Handle and socket are (Handle and socket are (Handle and socket are
attached.) attached.) attached.)

Torque Output Operating Storage Dimensions
Sq.dr
Qty./ Weight
Models Range Units （mm) Drive Battery Type temp. temp. (mm) Carton (kg) Case Dimensions
(N･m) （mm) range range W T D L
H3DT135 10 ～ 135 N・m 9.5 9.5 AAA Alkaline 45 45 24 75 5 0.194 130×107×53
H4DT200 20 ～ 200 N・m 12.7 12.7 Battery x 2 5 ～ 42℃ － 20 ～ 50℃ 45 45 24 75 5 0.184
H6DT600 120 ～ 600 N・m 19.0 19.0 90 90 50 99 1 1.55 180×155×105
※ H3DT135: 0.01 increment (from 10.00 to 99.99N・m), 0.1 increment (from 100.0 to 135.0N・m)
※ H4DT200: 0.01 increment (from 20.00 to 99.99N・m), 0.1 increment (from 100.0 to 200.0N・m)
※ H6DT600: 0.1 increment (from 60.0 to 600.0N・m) ■ H3DT135, H4DT200 ■ H6DT600
※ Exclude battery.
● N・m specification Accessory T
● Torque Accuracy ± 3% Calibration Certificate W/H Traceability 1 #JHHFTU
Instruction Manual 1
Plastic Case 1 W
※ AAA Alkaline Battery (separate purchase)

Expire Date of Calibration Certificate

1. When not in use, the product can stay up to 3 years after calibration 2. If the usage started after 3 years from calibration date, it can be used
date mentioned in the certificate. up to 1 year since the first usage or up to 10,000 tightening times.
Repair･Maintenance
■ Inaccuracy may occur if not used for a long time or impropriate use of ■ Torque devices require regular inspection (once a year or 10,000 times
tool. Please contact your distributor regularly for accuracy check. afterwards). Checking service is available with service charge.
■ Please contact your distributor in case of experiencing tool malfunction ■ For more information about tool handling, please contact your distributor.
(no clicking sound, slight force, etc.) ■ Accuracy range after repair will be ± 4%.
CAUTION
● Do not input power to "DIGITORQON" by using power tools.
