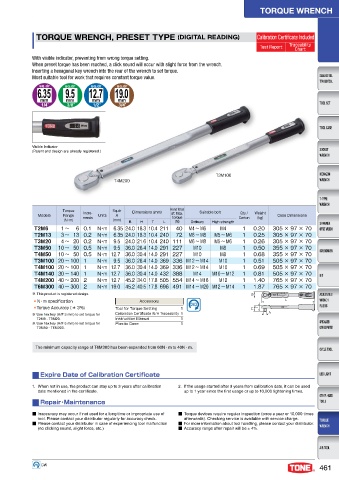

TORQUE WRENCH, PRESET TYPE (DIGITAL READING) Calibration Certificate Included

Test Report Traceability
Chart
With visible indicator, preventing from wrong torque setting.
When preset torque has been reached, a click sound will occur with slight force from the wrench.
Inserting a hexagonal key wrench into the rear of the wrench to set torque.
Most suitable tool for work that requires constant torque value.

6.35 9.5 12.7 19.0
mm mm mm mm
1/4 3/8 1/2 3/4

Visible Indicator σδλϧදࣔ෦෼
(Patent and design are already registered.)

T3M100
T4M200

Torque Sq.dr Dimensions (mm) Hand force Suitable bolt
Incre-
Qty./
Models Range ments Units A at Max. Carton Weight Case Dimensions
torque
(kg)
(N･m) (mm) B H T L (N) Ordinary High strength
T2M6 1～ 6 0.1 N・m 6.35 24.0 18.3 10.4 211 40 M4 ～ M6 M4 1 0.20 305 × 97 × 70
T2M13 3～ 13 0.2 N・m 6.35 24.0 18.3 10.4 240 72 M6 ～ M8 M5 ～ M6 1 0.25 305 × 97 × 70
T3M20 4～ 20 0.2 N・m 9.5 24.0 21.6 10.4 240 111 M6 ～ M8 M5 ～ M6 1 0.26 305 × 97 × 70
T3M50 10 ～ 50 0.5 N・m 9.5 36.0 26.4 14.0 291 227 M10 M8 1 0.50 355 × 97 × 70
T4M50 10 ～ 50 0.5 N・m 12.7 36.0 30.4 14.0 291 227 M10 M8 1 0.68 355 × 97 × 70
T3M100 20 ～ 100 1 N・m 9.5 36.0 26.4 14.0 369 336 M12 ～ M14 M10 1 0.51 505 × 97 × 70
T4M100 20 ～ 100 1 N・m 12.7 36.0 30.4 14.0 369 336 M12 ～ M14 M10 1 0.69 505 × 97 × 70
T4M140 30 ～ 140 1 N・m 12.7 36.0 30.4 14.0 432 388 M14 M10 ～ M12 1 0.81 505 × 97 × 70
T4M200 40 ～ 200 2 N・m 12.7 45.2 34.0 17.8 505 554 M14 ～ M16 M12 1 1.40 765 × 97 × 70
T6M300 40 ～ 300 2 N・m 19.0 45.2 40.5 17.8 696 491 M14 ～ M20 M12 ～ M14 1 1.87 765 × 97 × 70
※ This product is registered design. ̗ 0/-: /N
● N・m specification Accessory ̡
● Torque Accuracy ( ± 3%) Tool for Torque Setting 1 ̝ ̩
※ Use hex key (A/F 3 mm) to set torque for Calibration Certificate W/H Traceability 1 "
T2M6 - T3M20. Instruction Manual 1
※ Use hex key (A/F 5 mm) to set torque for Plastic Case 1
T3M50 - T6M300.

The minimum capacity range of T6M300 has been expanded from 60N · m to 40N · m.

Expire Date of Calibration Certificate

1. When not in use, the product can stay up to 3 years after calibration 2. If the usage started after 3 years from calibration date, it can be used
date mentioned in the certificate. up to 1 year since the first usage or up to 10,000 tightening times.
Repair･Maintenance

■ Inaccuracy may occur if not used for a long time or impropriate use of ■ Torque devices require regular inspection (once a year or 10,000 times
tool. Please contact your distributor regularly for accuracy check. afterwards). Checking service is available with service charge.
■ Please contact your distributor in case of experiencing tool malfunction ■ For more information about tool handling, please contact your distributor.
(no clicking sound, slight force, etc.) ■ Accuracy range after repair will be ± 4%.
