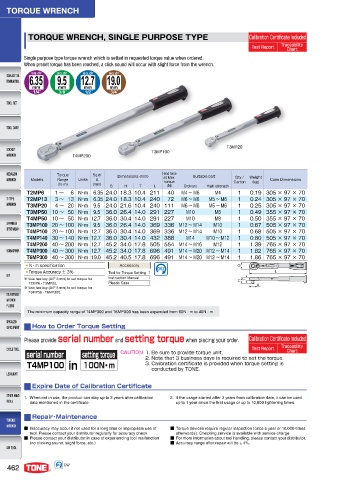

TORQUE WRENCH, SINGLE PURPOSE TYPE Calibration Certificate Included

Test Report Traceability
Chart
Single purpose type torque wrench which is setted in requested torque value when ordered.
When preset torque has been reached, a click sound will occur with slight force from the wrench.

6.35 9.5 12.7 19.0
mm mm mm mm
1/4 3/8 1/2 3/4

T3MP20
T3MP100
T4MP200

Torque Sq.dr Dimensions (mm) Hand force Suitable bolt
Qty./
Models Range Units A at Max. Carton Weight Case Dimensions
torque
(kg)
(N･m) (mm) B H T L (N) Ordinary High strength
T2MP6 1～ 6 N・m 6.35 24.0 18.3 10.4 211 40 M4 ～ M6 M4 1 0.19 305 × 97 × 70
T2MP13 3～ 13 N・m 6.35 24.0 18.3 10.4 240 72 M6 ～ M8 M5 ～ M6 1 0.24 305 × 97 × 70
T3MP20 4～ 20 N・m 9.5 24.0 21.6 10.4 240 111 M6 ～ M8 M5 ～ M6 1 0.25 305 × 97 × 70
T3MP50 10 ～ 50 N・m 9.5 36.0 26.4 14.0 291 227 M10 M8 1 0.49 355 × 97 × 70
T4MP50 10 ～ 50 N・m 12.7 36.0 30.4 14.0 291 227 M10 M8 1 0.50 355 × 97 × 70
T3MP100 20 ～ 100 N・m 9.5 36.0 26.4 14.0 369 336 M12 ～ M14 M10 1 0.67 505 × 97 × 70
T4MP100 20 ～ 100 N・m 12.7 36.0 30.4 14.0 369 336 M12 ～ M14 M10 1 0.68 505 × 97 × 70
T4MP140 30 ～ 140 N・m 12.7 36.0 30.4 14.0 432 388 M14 M10 ～ M12 1 0.80 505 × 97 × 70
T4MP200 40 ～ 200 N・m 12.7 45.2 34.0 17.8 505 554 M14 ～ M16 M12 1 1.39 765 × 97 × 70
T4MP300 40 ～ 300 N・m 12.7 45.2 34.0 17.8 696 491 M14 ～ M20 M12 ～ M14 1 1.82 765 × 97 × 70
T6MP300 40 ～ 300 N・m 19.0 45.2 40.5 17.8 696 491 M14 ～ M20 M12 ～ M14 1 1.86 765 × 97 × 70
● N・m specification Accessory ̗ 0/-: /N
● Torque Accuracy ± 3% Tool for Torque Setting 1 ̡
※ Use hex key (A/F 3 mm) to set torque for Instruction Manual 1 ̝ ̩
T2MP6 - T3MP20. Plastic Case 1 "
※ Use hex key (A/F 5 mm) to set torque for
T3MP50 - T6MP300.

The minimum capacity range of T4MP300 and T6MP300 has been expanded from 60N · m to 40N · m.
How to Order Torque Setting

1MFBTF QSPWJEF TFSJBM OVNCFS BOE TFUUJOH UPSRVF XIFO QMBDJOH ZPVS PSEFS Calibration Certificate Included
Test Report Traceability
Chart
TFSJBM OVNCFS TFUUJOH UPSRVF $"65*0/ #F TVSF UP QSPWJEF UPSRVF VOJU
/PUF UIBU CVTJOFTT EBZT JT SFRVJSFE UP TFU UIF UPSRVF
5 .1 JO $BMJCSBUJPO DFSUJpDBUF JT QSPWJEFE XIFO UPSRVF TFUUJOH JT
DPOEVDUFE CZ 50/&

Expire Date of Calibration Certificate

1. When not in use, the product can stay up to 3 years after calibration 2. If the usage started after 3 years from calibration date, it can be used
date mentioned in the certificate. up to 1 year since the first usage or up to 10,000 tightening times.
Repair･Maintenance

■ Inaccuracy may occur if not used for a long time or impropriate use of ■ Torque devices require regular inspection (once a year or 10,000 times
tool. Please contact your distributor regularly for accuracy check. afterwards). Checking service is available with service charge.
■ Please contact your distributor in case of experiencing tool malfunction ■ For more information about tool handling, please contact your distributor.
(no clicking sound, slight force, etc.) ■ Accuracy range after repair will be ± 4%.
