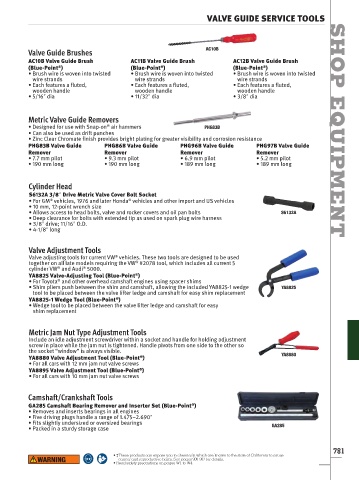

VALVE GUIDE SERVICE TOOLS

Valve Guide Brushes AC10B SHOP
AC10B Valve Guide Brush AC11B Valve Guide Brush AC12B Valve Guide Brush
®
®
®
(Blue-Point ) (Blue-Point ) (Blue-Point )
• Brush wire is woven into twisted • Brush wire is woven into twisted • Brush wire is woven into twisted
wire strands wire strands wire strands
• Each features a fluted, • Each features a fluted, • Each features a fluted,
wooden handle wooden handle wooden handle
• 5/16ʺ dia • 11/32ʺ dia • 3/8ʺ dia
Metric Valve Guide Removers
• Designed for use with Snap-on air hammers PHG83B
®
• Can also be used as drift punches
• Zinc Clear Chromate finish provides bright plating for greater visibility and corrosion resistance
PHG83B Valve Guide PHG86B Valve Guide PHG96B Valve Guide PHG97B Valve Guide
Remover Remover Remover Remover
• 7.7 mm pilot • 9.3 mm pilot • 6.9 mm pilot • 5.2 mm pilot
• 190 mm long • 190 mm long • 189 mm long • 189 mm long EQUIPMENT

Cylinder Head
S6132A 3/8ʺ Drive Metric Valve Cover Bolt Socket
®
®
• For GM vehicles, 1976 and later Honda vehicles and other import and US vehicles
• 10 mm, 12-point wrench size
• Allows access to head bolts, valve and rocker covers and oil pan bolts S6132A
• Deep clearance for bolts with extended tip as used on spark plug wire harness
• 3/8ʺ drive; 11/16ʺ O.D.
• 4-1/8ʺ long
Valve Adjustment Tools
®
Valve adjusting tools for current VW vehicles. These two tools are designed to be used
®
together on all late models requiring the VW #2078 tool, which includes all current 5
®
®
cylinder VW and Audi 5000.
®
YA8825 Valve-Adjusting Tool (Blue-Point )
®
• For Toyota and other overhead camshaft engines using spacer shims
• Shim pliers push between the shim and camshaft, allowing the included YA8825-1 wedge YA8825
tool to be placed between the valve lifter ledge and camshaft for easy shim replacement
YA8825-1 Wedge Tool (Blue-Point )
®
• Wedge tool to be placed between the valve lifter ledge and camshaft for easy
shim replacement
Metric Jam Nut Type Adjustment Tools
Include an idle adjustment screwdriver within a socket and handle for holding adjustment
screw in place while the jam nut is tightened. Handle pivots from one side to the other so
the socket “window” is always visible. YA8880
®
YA8880 Valve Adjustment Tool (Blue-Point )
• For all cars with 12 mm jam nut valve screws
®
YA8895 Valve Adjustment Tool (Blue-Point )
• For all cars with 10 mm jam nut valve screws
Camshaft/Crankshaft Tools
®
GA285 Camshaft Bearing Remover and Inserter Set (Blue-Point )
• Removes and inserts bearings in all engines
• Five driving plugs handle a range of 1.475–2.690ʺ
• Fits slightly undersized or oversized bearings GA285
• Packed in a sturdy storage case
