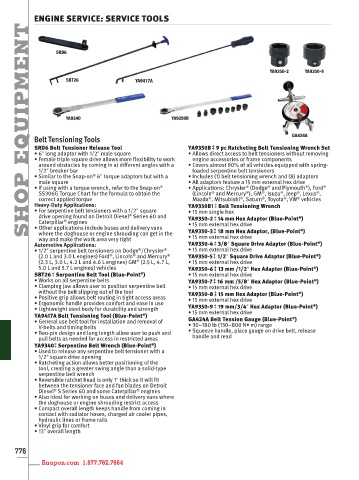

ENGINE SERVICE: SERVICE TOOLS
EQUIPMENT

SRD6

YA9350-2 YA9350-9
SBT26 YA9417A

YA9340 YA9350B

GA424A
Belt Tensioning Tools
SRD6 Belt Tensioner Release Tool YA9350B ‡ 9 pc Ratcheting Belt Tensioning Wrench Set
• 6ʺ long adaptor with 1/2ʺ male square • Allows direct access to belt tensioners without removing
• Female triple square drive allows more flexibility to work engine accessories or frame components
around obstacles by coming in at different angles with a • Covers almost 90% of all vehicles equipped with spring-
loaded serpentine belt tensioners
1/2ʺ breaker bar ® ® • Includes (1) belt tensioning wrench and (8) adaptors ®
SHOP • If using with a torque wrench, refer to the Snap-on • Applications: Chrysler (Dodge and Plymouth ), Ford
• Similar to the Snap-on 6ʺ torque adaptors but with a
• All adaptors feature a 15 mm external hex drive
male square
®
®
®
®
®
SS306G Torque Chart for the formula to obtain the
®
(Lincoln and Mercury ), GM , Isuzu , Jeep , Lexus ,
®
®
®
®
®
®
correct applied torque
Mazda , Mitsubishi , Saturn , Toyota , VW vehicles
®
®
Heavy-Duty Applications:
YA9350B1 ‡ Belt Tensioning Wrench
• For serpentine belt tensioners with a 1/2ʺ square
• 15 mm single hex
®
drive opening found on Detroit Diesel Series 60 and
YA9350-2 ‡ 14 mm Hex Adaptor (Blue-Point )
®
®
Caterpillar engines
• Other applications include buses and delivery vans
YA9350-3 ‡ 18 mm Hex Adaptor, (Blue-Point )
where the doghouse or engine shrouding can get in the
• 15 mm external hex drive
way and make the work area very tight • 15 mm external hex drive ®
®
Automotive Applications: YA9350-4 ‡ 3/8ʺ Square Drive Adaptor (Blue-Point )
®
®
• 1/2ʺ serpentine belt tensioners on Dodge /Chrysler • 15 mm external hex drive
®
®
®
(2.0 L and 3.0 L engines) Ford , Lincoln and Mercury YA9350-5 ‡ 1/2ʺ Square Drive Adaptor (Blue-Point )
®
(2.3 L, 3.0 L, 4.2 L and 4.6 L engines) GM (2.5 L, 4.7 L, • 15 mm external hex drive
®
5.0 L and 5.7 L engines) vehicles YA9350-6 ‡ 13 mm /1/2ʺ Hex Adaptor (Blue-Point )
®
®
SBT26 ‡ Serpentine Belt Tool (Blue-Point ) • 15 mm external hex drive
• Works on all serpentine belts YA9350-7 ‡ 16 mm /5/8ʺ Hex Adaptor (Blue-Point )
®
• Clamping jaw allows user to position serpentine belt • 15 mm external hex drive
without the belt slipping out of the tool YA9350-8 ‡ 15 mm Hex Adaptor (Blue-Point )
®
• Positive grip allows belt routing in tight access areas • 15 mm external hex drive
• Ergonomic handle provides comfort and ease in use ®
• Lightweight steel body for durability and strength YA9350-9 ‡ 19 mm/3/4ʺ Hex Adaptor (Blue-Point )
• 15 mm external hex drive
YA9417A Belt Tensioning Tool (Blue-Point ) ®
®
• General use belt tool for installation and removal of GA424A Belt Tension Gauge (Blue-Point )
V-belts and timing belts • 30–180 lb (130–800 N• m) range
• Two-pin design and long length allow user to push and • Squeeze handle, place gauge on drive belt, release
pull belts as needed for access in restricted areas handle and read
®
YA9340‡ Serpentine Belt Wrench (Blue-Point )
• Used to release any serpentine belt tensioner with a
1/2ʺ square drive opening
• Ratcheting action allows better positioning of the
tool, creating a greater swing angle than a solid-type
serpentine belt wrench
• Reversible ratchet head is only 1ʺ thick so it will fit
between the tensioner face and fan blades on Detroit
Diesel S Series 60 and some Caterpillar engines
®
®
• Also ideal for working on buses and delivery vans where
the doghouse or engine shrouding restrict access
• Compact overall length keeps handle from coming in
contact with radiator hoses, charged air cooler pipes,
hydraulic lines or frame rails
• Vinyl grip for comfort
• 13ʺ overall length
776
Snapon.com 1.877.762.7664
