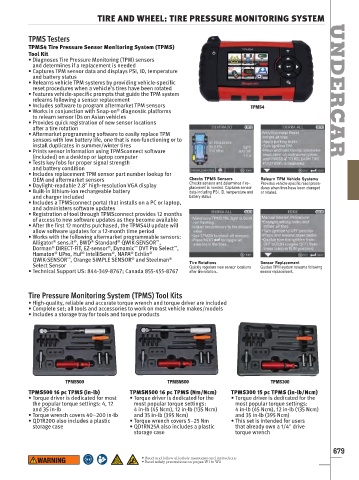

TIRE AND WHEEL: TIRE PRESSURE MONITORING SYSTEM

TPMS Testers
TPMS4 Tire Pressure Sensor Monitoring System (TPMS)
Tool Kit
• Diagnoses Tire Pressure Monitoring (TPM) sensors
and determines if a replacement is needed
• Captures TPM sensor data and displays PSI, ID, temperature
and battery status
• Relearns vehicle TPM systems by providing vehicle-specific
reset procedures when a vehicle’s tires have been rotated UNDERCAR
• Features vehicle-specific prompts that guide the TPM system
relearns following a sensor replacement
• Includes software to program aftermarket TPM sensors TPMS4
• Works in conjunction with Snap-on diagnostic platforms
®
to relearn sensor IDs on Asian vehicles
• Provides quick registration of new sensor locations
after a tire rotation
• Aftermarket programming software to easily replace TPM
sensors with low battery life, one that is non-functioning or to
install duplicates in summer/winter tires
• Prints sensor information using TPMSconnect software
(included) on a desktop or laptop computer
• Tests key fobs for proper signal strength
and battery condition
• Includes replacement TPM sensor part number lookup for
OEM and aftermarket sensors Checks TPMS Sensors Relearn TPM Vehicle Systems
• Daylight-readable 2.8ʺ high-resolution VGA display Checks sensors and determines if re- Provides vehicle-specific reset proce-
placement is needed. Captures sensor
dures when tires have been changed
• Built-in lithium-ion rechargeable battery data including PSI, ID, temperature and or rotated.
and charger included battery status.
• Includes a TPMSconnect portal that installs on a PC or laptop,
and administers software updates
• Registration of tool through TPMSconnect provides 12 months
of access to new software updates as they become available
• After the first 12 months purchased, the TPMS4U update will
allow software updates for a 12-month time period
• Works with the following aftermarket programmable sensors:
Alligator sens.it , BWD Standard QWIK-SENSOR ,
®
®
™
®
®
™
®
™
®
Dorman DIRECT-FIT, EZ-sensor , Dynamic DVT Pro Select ,
®
®
®
®
Hamaton UPro, Huf IntelliSens , NAPA Echlin
®
®
™
QWIK-SENSOR , Orange SIMPLE SENSOR and Steelman Tire Rotations Sensor Replacement
®
Select Sensor Quickly registers new sensor locations Guides TPM system relearns following
• Technical Support US: 844-349-8767; Canada 855-455-8767 after tire rotation.. sensor replacement..
Tire Pressure Monitoring System (TPMS) Tool Kits
• High-quality, reliable and accurate torque wrench and torque driver are included
• Complete set; all tools and accessories to work on most vehicle makes/models
• Includes a storage tray for tools and torque products
TPMS500 TPMSN500 TPMS300
TPMS500 16 pc TPMS (in-lb) TPMSN500 16 pc TPMS (Nm/Ncm) TPMS300 15 pc TPMS (in-lb/Ncm)
• Torque driver is dedicated for most • Torque driver is dedicated for the • Torque driver is dedicated for the
the popular torque settings: 4, 12 most popular torque settings: most popular torque settings:
and 35 in-lb 4 in-lb (45 Ncm), 12 in-lb (135 Ncm) 4 in-lb (45 Ncm), 12 in-lb (135 Ncm)
• Torque wrench covers 40–200 in-lb and 35 in-lb (395 Ncm) and 35 in-lb (395 Ncm)
• QD1R200 also includes a plastic • Torque wrench covers 5–25 Nm • This set is intended for users
storage case • QD1RN25A also includes a plastic that already own a 1/4ʺ drive
storage case torque wrench

679
