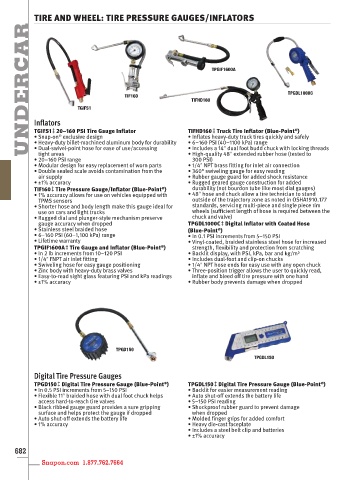

TIRE AND WHEEL: TIRE PRESSURE GAUGES/INFLATORS
UNDERCAR

TPGIF1600A

TPGDL1000C
TIF160
TIFHD160
TGIFS1

Inflators
TGIFS1 ‡ 20–160 PSI Tire Gauge Inflator TIFHD160 ‡ Truck Tire Inflator (Blue-Point )
®
• Snap-on exclusive design • Inflates heavy-duty truck tires quickly and safely
®
• Heavy-duty billet-machined aluminum body for durability • 6–160 PSI (40–1100 kPa) range
• Dual-swivel-point hose for ease of use/accessing • Includes a 14ʺ dual foot budd chuck with locking threads
tight areas • High-quality 48ʺ extended rubber hose (tested to
• 20–160 PSI range 300 PSI)
• Modular design for easy replacement of worn parts • 1/4ʺ NPT brass fitting for inlet air connection
• Double sealed scale avoids contamination from the • 360° swiveling gauge for easy reading
air supply • Rubber gauge guard for added shock resistance
• ±1% accuracy • Rugged geared gauge construction for added
®
TIF160 ‡ Tire Pressure Gauge/Inflator (Blue-Point ) durability (not bourdon tube like most dial gauges)
• 1% accuracy allows for use on vehicles equipped with • 48ʺ hose and chuck allow a tire technician to stand
TPMS sensors outside of the trajectory zone as noted in OSHA1910.177
• Shorter hose and body length make this gauge ideal for standards, servicing multi-piece and single piece rim
use on cars and light trucks wheels (sufficient length of hose is required between the
• Rugged dial and plunger-style mechanism preserve chuck and valve)
gauge accuracy when dropped TPGDL1000C ‡ Digital Inflator with Coated Hose
• Stainless steel braided hose (Blue-Point )
®
• 6–160 PSI (60–1,100 kPa) range • In 0.1 PSI increments from 5–150 PSI
• Lifetime warranty • Vinyl-coated, braided stainless steel hose for increased
®
TPGIF1600A ‡ Tire Gauge and Inflator (Blue-Point ) strength, flexibility and protection from scratching
• In 2 lb increments from 10–120 PSI • Backlit display, with PSI, kPa, bar and kg/m²
• 1/4ʺ FNPT air inlet fitting • Includes dual-foot and clip-on chucks
• Swiveling hose for easy gauge positioning • 1/4ʺ NPT hose ends for easy use with any open chuck
• Zinc body with heavy-duty brass valves • Three-position trigger allows the user to quickly read,
• Easy-to-read sight glass featuring PSI and kPa readings inflate and bleed off tire pressure with one hand
• ±1% accuracy • Rubber body prevents damage when dropped

TPGD150
TPGDL150

Digital Tire Pressure Gauges
®
®
TPGD150 ‡ Digital Tire Pressure Gauge (Blue-Point ) TPGDL150 ‡ Digital Tire Pressure Gauge (Blue-Point )
• In 0.5 PSI increments from 5–150 PSI • Backlit for easier measurement reading
• Flexible 11ʺ braided hose with dual foot chuck helps • Auto shut-off extends the battery life
access hard-to-reach tire valves • 5–150 PSI reading
• Black ribbed gauge guard provides a sure gripping • Shockproof rubber guard to prevent damage
surface and helps protect the gauge if dropped when dropped
• Auto shut-off extends the battery life • Molded finger grips for added comfort
• 1% accuracy • Heavy die-cast faceplate
• Includes a steel belt clip and batteries
• ±1% accuracy
