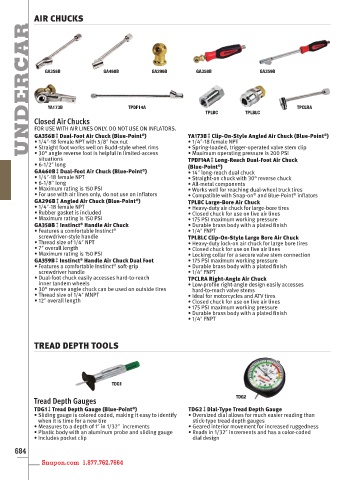

AIR CHUCKS
UNDERCAR

GA356B GA460B GA296B GA358B GA359B

YA173B TPDF14A TPCLRA
TPLBC TPLBLC
Closed Air Chucks
FOR USE WITH AIR LINES ONLY. DO NOT USE ON INFLATORS.
®
®
GA356B ‡ Dual-Foot Air Chuck (Blue-Point ) YA173B ‡ Clip-On-Style Angled Air Chuck (Blue-Point )
• 1/4ʺ-18 female NPT with 5/8ʺ hex nut • 1/4ʺ-18 female NPT
• Straight foot works well on Budd-style wheel rims • Spring-loaded, trigger-operated valve stem clip
• 30° angle reverse foot is helpful in limited-access • Maximum operating pressure is 200 PSI
situations TPDF14A ‡ Long-Reach Dual-Foot Air Chuck
• 6-1/2ʺ long (Blue-Point )
®
®
GA460B ‡ Dual-Foot Air Chuck (Blue-Point ) • 14ʺ long-reach dual chuck
• 1/4ʺ-18 female NPT • Straight-on chuck with 30° reverse chuck
• 6-1/8ʺ long • All-metal components
• Maximum rating is 150 PSI • Works well for reaching dual-wheel truck tires
• For use with air lines only, do not use on inflators • Compatible with Snap-on and Blue-Point inflators
®
®
GA296B ‡ Angled Air Chuck (Blue-Point ) TPLBC Large-Bore Air Chuck
®
• 1/4ʺ-18 female NPT • Heavy-duty air chuck for large-bore tires
• Rubber gasket is included • Closed chuck for use on live air lines
• Maximum rating is 150 PSI • 175 PSI maximum working pressure
GA358B ‡ Instinct Handle Air Chuck • Durable brass body with a plated finish
®
®
• Features a comfortable Instinct • 1/4ʺ FNPT
screwdriver-style handle TPLBLC Clip-On-Style Large Bore Air Chuck
• Thread size of 1/4ʺ NPT • Heavy-duty lock-on air chuck for large bore tires
• 7ʺ overall length • Closed chuck for use on live air lines
• Maximum rating is 150 PSI • Locking collar for a secure valve stem connection
GA359B ‡ Instinct Handle Air Chuck Dual Foot • 175 PSI maximum working pressure
®
®
• Features a comfortable Instinct soft-grip • Durable brass body with a plated finish
screwdriver handle • 1/4ʺ FNPT
• Dual-foot chuck easily accesses hard-to-reach TPCLRA Right-Angle Air Chuck
inner tandem wheels • Low-profile right-angle design easily accesses
• 30° reverse angle chuck can be used on outside tires hard-to-reach valve stems
• Thread size of 1/4ʺ MNPT • Ideal for motorcycles and ATV tires
• 12ʺ overall length • Closed chuck for use on live air lines
• 175 PSI maximum working pressure
• Durable brass body with a plated finish
• 1/4ʺ FNPT
TREAD DEPTH TOOLS

TDG1
TDG2
Tread Depth Gauges
®
TDG1 ‡ Tread Depth Gauge (Blue-Point ) TDG2 ‡ Dial-Type Tread Depth Gauge
• Sliding gauge is colored coded, making it easy to identify • Oversized dial allows for much easier reading than
when it is time for a new tire stick-type tread depth gauges
• Measures to a depth of 1ʺ in 1/32ʺ increments • Geared interior movement for increased ruggedness
• Plastic body with an aluminum probe and sliding gauge • Reads in 1/32ʺ increments and has a color-coded
• Includes pocket clip dial design
