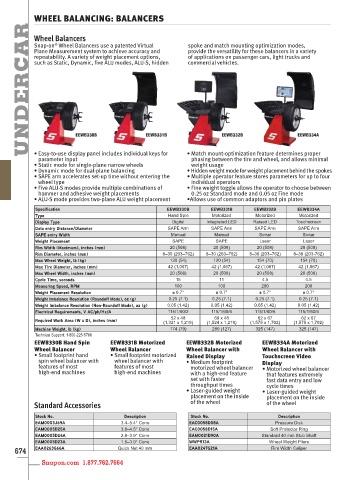

WHEEL BALANCING: BALANCERS
UNDERCAR
Wheel Balancers
Snap-on Wheel Balancers use a patented Virtual spoke and match mounting optimization modes,
®
Plane Measurement system to achieve accuracy and provide the versatility for these balancers in a variety
repeatability. A variety of weight placement options, of applications on passenger cars, light trucks and
such as Static, Dynamic, five ALU modes, ALU-S, hidden commercial vehicles.

EEWB330B EEWB331B EEWB332B EEWB334A

• Easy-to-use display panel includes individual keys for • Match mount-optimization feature determines proper
parameter input phasing between the tire and wheel, and allows minimal
• Static mode for single-plane narrow wheels weight usage
• Dynamic mode for dual-plane balancing • Hidden weight mode for weight placement behind the spokes
• SAPE arm accelerates set-up time without entering the • Multiple operator feature stores parameters for up to four
wheel type individual operators
• Five ALU-S modes provide multiple combinations of • Fine weight toggle allows the operator to choose between
hammer and adhesive weight placements 0.25 oz Standard mode and 0.05 oz Fine mode
• ALU-S mode provides two-plane ALU weight placement •Allows use of common adaptors and pin plates
Specification EEWB330B EEWB331B EEWB332B EEWB334A
Type Hand Spin Motorized Motorized Motorized
Display Type Digital Integrated LED Raised LED Touchscreen
Data entry Distance/Diameter SAPE Arm SAPE Arm SAPE Arm SAPE Arm
SAPE entry Width Manual Manual Sonar Sonar
Weight Placement SAPE SAPE Laser Laser
Rim Width (Maximum), inches (mm) 20 (508) 20 (508) 20 (508) 20 (508)
Rim Diameter, inches (mm) 8–30 (203–762) 8–30 (203–762) 8–30 (203–762) 8–30 (203-762)
Max Wheel Weight, lb (kg) 120 (54) 120 (54) 154 (70) 154 (70)
Max Tire Diameter, inches (mm) 42 (1,067) 42 (1,067) 42 (1,067) 42 (1,067)
Max Wheel Width, inches (mm) 20 (508) 20 (508) 20 (508) 20 (508)
Cycle Time, seconds 15 11 4.5 4.5
Measuring Speed, RPM 100 100 200 200
Weight Placement Resolution ± 0.7° ± 0.7° ± 0.7° ± 0.7°
Weight Imbalance Resolution (Roundoff Mode), oz (g) 0.25 (7.1) 0.25 (7.1) 0.25 (7.1) 0.25 (7.1)
Weight Imbalance Resolution (Non-Roundoff Mode), oz (g) 0.05 (1.42) 0.05 (1.42) 0.05 (1.42) 0.05 (1.42)
Electrical Requirements, V AC/ph/Hz/A 115/1/60/2 115/1/60/6 115/1/60/6 115/1/60/6
52 x 48 60 x 48 62 x 67 62 x 67
Required Work Area (W x D), inches (mm) (1,321 x 1,219) (1,524 x 1,219) (1,575 x 1,702) (1,575 x 1,702)
Machine Weight, lb (kg) 174 (79) 280 (127) 325 (147) 325 (147)
Technical Support: 1-800-225-5786
EEWB330B Hand Spin EEWB331B Motorized EEWB332B Motorized EEWB334A Motorized
Wheel Balancer Wheel Balancer Wheel Balancer with Wheel Balancer with
• Small footprint hand • Small footprint motorized Raised Display Touchscreen Video
spin wheel balancer with wheel balancer with • Medium footprint Display
features of most features of most motorized wheel balancer • Motorized wheel balancer
high-end machines high-end machines with a high-end feature that features extremely
set with faster fast data entry and low
throughput times cycle times
• Laser-guided weight • Laser-guided weight

placement on the inside placement on the inside
Standard Accessories of the wheel of the wheel
Stock No. Description Stock No. Description
EAM0003J69A 3.4–5.4ʺ Cone EAC0058D08A Pressure Disk
EAM0005D25A 3.8–4.5ʺ Cone EAC0058D15A Soft Protector Ring
EAM0005D24A 2.8–3.9ʺ Cone EAM0021D90A Standard 40 mm Stub Shaft
EAM0005D23A 1.6–3.0ʺ Cone WWPR13A Wheel Weight Pliers
EAA0263G66A Quick Nut 40 mm EAA0247G21A Rim Width Caliper
674

Snapon.com 1.877.762.7664
