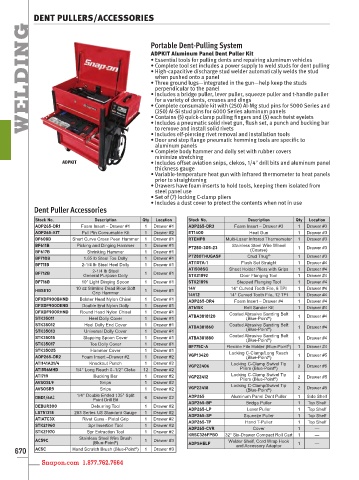

Page 672 - 实耐宝完整US版1500

DENT PULLERS/ACCESSORIES
WELDING ADPKIT Aluminum Panel Dent Puller Kit

Portable Dent-Pulling System

• Essential tools for pulling dents and repairing aluminum vehicles
• Complete tool set includes a power supply to weld studs for dent pulling
• High-capacitive discharge stud welder automatically welds the stud
when pushed onto a panel
• Three ground lugs—integrated in the gun—help keep the studs
perpendicular to the panel
• Includes a bridge puller, lever puller, squeeze puller and t-handle puller
for a variety of dents, creases and dings
• Complete consumable kit with (250) Al-Mg stud pins for 5000 Series and
(250) Al-Si stud pins for 6000 Series aluminum panels
• Contains (5) quick-clamp pulling fingers and (5) each twist eyelets
• Includes a pneumatic solid rivet gun, flush set, a punch and bucking bar
to remove and install solid rivets
• Includes elf-piercing rivet removal and installation tools
• Door and step flange pneumatic hemming tools are specific to
aluminum panels
• Complete body hammer and dolly set with rubber covers
minimize stretching
ADPKIT • Includes offset aviation snips, clekos, 1/4ʺ drill bits and aluminum panel
thickness gauge
• Variable-temperature heat gun with infrared thermometer to heat panels
prior to straightening
• Drawers have foam inserts to hold tools, keeping them isolated from
steel panel use
• Set of (7) locking C-clamp pliers
• Includes a dust cover to protect the contents when not in use
Dent Puller Accessories
Stock No. Description Qty Location Stock No. Description Qty Location
ADP265-DR1 Foam Insert – Drawer #1 1 Drawer #1 ADP265-DR3 Foam Insert – Drawer #3 1 Drawer #3
ADP265-KIT Pull Pin Consumable Kit 1 Drawer #2 ET1400 Heat Gun 1 Drawer #3
BF608B Short Curve Cross Peen Hammer 1 Drawer #1 RTEMP8 Multi-Laser Infrared Thermometer 1 Drawer #3
BF611B Picking and Dinging Hammer 1 Drawer #1 Stainless Steel Wire Wheel
PT280-305-23 1 Drawer #3
BF617B Shrinking Hammer 1 Drawer #1 (Coarse)
BF710B 1.65 lb Steel Toe Dolly 1 Drawer #1 PT280THUGASF Crud Thug ® 1 Drawer #3
BF711B 2-1/4 lb Steel Heel Dolly 1 Drawer #1 ATI107A-1 Flush Set Straight 1 Drawer #4
2-1/4 lb Steel ATI508SG Sheet Holder Pliers with Grips 1 Drawer #4
BF712B General Purpose Dolly 1 Drawer #1 STK21892 Door Flanging Tool 1 Drawer #4
BF716B 10ʺ Light Dinging Spoon 1 Drawer #1 STK21896 Stepped Flanging Tool 1 Drawer #4
10 oz Slimline Dead Blow Soft 14V 14ʺ Curved Tooth File, 8 TPI 1 Drawer #4
HBSE10 1 Drawer #1
Grip Hammer 14V12 14ʺ Curved Tooth File, 12 TPI 1 Drawer #4
DFXDF900BHND Bolster Head Nylon Chisel 1 Drawer #1 ADP265-DR4 Foam Insert – Drawer #4 1 Drawer #4
DFXDF900DEND Double End Nylon Dolly 1 Drawer #1 AT615K Belt Sander Kit 1 Drawer #4
DFXDF900RHND Round Head Nylon Chisel 1 Drawer #1 Coated Abrasive Sanding Belt
ATBA3818120 1 Drawer #4
STK35011 Heel Dolly Cover 1 Drawer #1 (Blue-Point )
®
STK35012 Heel Dolly End Cover 1 Drawer #1 Coated Abrasive Sanding Belt
ATBA381860 ® 1 Drawer #4
STK35013 Universal Dolly Cover 1 Drawer #1 (Blue-Point )
STK35015 Slapping Spoon Cover 1 Drawer #1 ATBA381880 Coated Abrasive Sanding Belt 1 Drawer #4
(Blue-Point )
®
STK35017 Toe Dolly Cover 1 Drawer #1
®
BF775C-A Flexible File Holder (Blue-Point ) 1 Drawer #4
STK35025 Hammer Cover 1 Drawer #1 Locking C-Clamp/Long Reach
®
ADP265-DR2 Foam Insert –Drawer #2 1 Drawer #2 VGP13420 (Blue-Point ) 1 Drawer #5
ATI141A31/4 Knockout Punch 1 Drawer #2 VGP22406 Locking C-Clamp Swivel Tip 2 Drawer #5
®
ATI556MHD 1/4ʺ Long Reach 0–1/2ʺ Cleko 12 Drawer #2 Pliers (Blue-Point )
ATI719 Bucking Bar 1 Drawer #2 VGP22412 Locking C-Clamp Swivel Tip 2 Drawer #5
Pliers (Blue-Point )
®
AVSOSL9 Snips 1 Drawer #2 Locking C-Clamp/Swivel Tip
AVSOSR9 Snips 1 Drawer #2 VGP22418 (Blue-Point ) 2 Drawer #5
®
DBD1/4A‡ 1/4ʺ Double Ended 135° Split 6 Drawer #2 ADP265 Aluminum Panel Dent Puller 1 Side Shelf
Point Drill Bit
DEBUR300 Deburring Tool 1 Drawer #2 ADP265-BP Bridge Puller 1 1 Top Shelf
ADP265-LP
Lever Puller
Top Shelf
LST51318 283 Series US Standard Gauge 1 Drawer #2 ADP265-SP Squeeze Puller 1 Top Shelf
ATIATC3X Rivet Guns - Pistol Grip 1 Drawer #2
ADP265-TP Hand T-Puller 1 Top Shelf
STK21960 Spr Insertion Tool 1 Drawer #2
ADP265-CVR Cover 1 —
STK21970 Spr Extraction Tool 1 Drawer #2 KRSC326FPBO 32ʺ Six-Drawer Compact Roll Cart 1 —
Stainless Steel Wire Brush
AC59C 1 Drawer #3 Welder Shelf, Cord Wrap Hook
(Blue-Point ) ADPSHELF and Accessory Adaptor 1 —
®
®
670 AC5C Hand Scratch Brush (Blue-Point ) 1 Drawer #3
Snapon.com 1.877.762.7664
