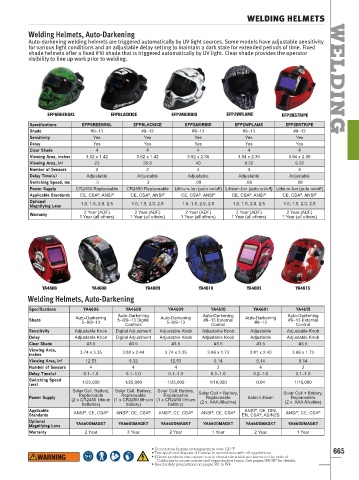

WELDING HELMETS

Welding Helmets, Auto-Darkening
Auto-darkening welding helmets are triggered automatically by UV light sources. Some models have adjustable sensitivity
for various light conditions and an adjustable delay setting to maintain a dark state for extended periods of time. Fixed
shade helmets offer a fixed #10 shade that is triggered automatically by UV light. Clear shade provides the operator
visibility to line up work prior to welding. WELDING

EFPGREENSKL EFPBLACKICE EFP2MORBID EFP2WFLAME EFP2BSTRIPE
Specifications EFPGREENSKL EFPBLACKICE EFP2MORBID EFP2WFLAME EFP2BSTRIPE
Shade #9–13 #9–13 #9–13 #9–13 #9–13
Sensitivity Yes Yes Yes Yes Yes
Delay Yes Yes Yes Yes Yes
Clear Shade 4 4 4 4 4
Viewing Area, inches 3.62 x 1.42 3.62 x 1.42 3.82 x 2.36 3.94 x 2.36 3.94 x 2.36
Viewing Area, in² 23 35.6 40 9.32 9.32
Number of Sensors 2 2 4 4 4
Delay Time(s) Adjustable Adjustable Adjustable Adjustable Adjustable
Switching Speed, ms .3 .3 .08 .08 .08
Power Supply CR2450 Replaceable CR2450 Replaceable Lithium-Ion (auto on/off) Lithium-Ion (auto on/off) Lithium-Ion (auto on/off)
®
®
®
®
®
Applicable Standards CE, CSA , ANSI ® CE, CSA , ANSI ® CE, CSA , ANSI ® CE, CSA , ANSI ® CE, CSA , ANSI ®
Optional 1.0, 1.5, 2.0, 2.5 1.0, 1.5, 2.0, 2.5 1.0, 1.5, 2.0, 2.5 1.0, 1.5, 2.0, 2.5 1.0, 1.5, 2.0, 2.5
Magnifying Lens
2 Year (ADF) 2 Year (ADF) 2 Year (ADF) 2 Year (ADF) 2 Year (ADF)
Warranty
1 Year (all others) 1 Year (all others) 1 Year (all others) 1 Year (all others) 1 Year (all others)

YA4606 YA4608 YA4609 YA4610 YA4601 YA4615
Welding Helmets, Auto-Darkening
Specifications YA4606 YA4608 YA4609 YA4610 YA4601 YA4615
Auto-Darkening Auto-Darkening Auto-Darkening
Auto-Darkening Auto-Darkening Auto-Darkening
Shade 5–8/9–13 Digital #9–13 External #9–13 External
5–8/9–13 5–8/9–13 #9–13
Controls Control Control
Sensitivity Adjustable Knob Digital Adjustment Adjustable Knob Adjustable Knob Adjustable Adjustable Knob
Delay Adjustable Knob Digital Adjustment Adjustable Knob Adjustable Knob Adjustable Adjustable Knob
Clear Shade #3.5 #3.5 #3.5 #3.5 #3.5 #3.5
Viewing Area, 3.74 x 3.35 3.82 x 2.44 3.74 x 3.35 3.86 x 1.73 3.81 x 2.40 3.86 x 1.73
inches
Viewing Area, in² 12.53 9.32 12.53 9.14 9.14 9.14
Number of Sensors 4 4 4 2 4 2
Delay Time(s) 0.1–1.0 0.1–1.0 0.1–1.0 0.1–1.0 0.2–1.0 0.1–1.0
Switching Speed 1/25,000 1/25,000 1/25,000 1/16,000 0.04 1/16,000
(ms)
Solar Cell, Battery, Solar Cell, Battery, Solar Cell, Battery, Solar Cell + Battery, Solar Cell + Battery,
Replaceable Replaceable Replaceable
Power Supply Replaceable Solar-Lithium Replaceable
(2 x CR2450 lithium (1 x CR2450 lithium (1 x CR2450 lithium (2 x AAA Alkaline) (2 x AAA Alkaline)
batteries) battery) battery)
®
Applicable ® ® ® ® ® ® ® ® ANSI , CE, DIN, ® ®
®
Standards ANSI , CE, CSA ANSI , CE, CSA ANSI , CE, CSA ANSI , CE, CSA EN, CSA , AS/NZS ANSI , CE, CSA
Optional YA4600MAGKT YA4600MAGKT YA4600MAGKT YA4600MAGKT YA4600MAGKT YA4600MAGKT
Magnifying Lens
Warranty 2 Year 3 Year 2 Year 1 Year 2 Year 1 Year
• Do not store butane at temperature over 120 °F 665
• Transport and dispose of butane in accordance with all regulations
• ‡ These products can expose you to chemicals which are known to the state of
California to cause cancer and reproductive harm. See pages 906-907 for details.
• Read safety precautions on pages W1 to W4
