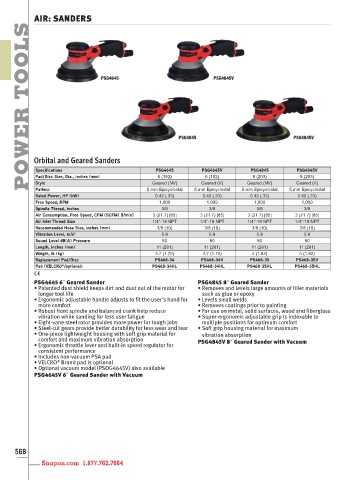

Page 570 - 实耐宝完整US版1500

AIR: SANDERS
TOOLS PSG4645 PSG4645V

POWER Orbital and Geared Sanders PSG4645 PSG4845 PSG4645V PSG4845 PSG4845V

Specifications
PSG4845V
6 (152)
6 (152)
8 (203)
8 (203)
Pad/Disc Size, Dia., inches (mm)
Geared (V)
Geared (NV)
Geared (NV)
Geared (V)
Style
Pattern
Rated Power, HP (kW) 5 mm Epicycloidal 5 mm Epicycloidal 5 mm Epicycloidal 5 mm Epicycloidal
0.42 (.33)
0.42 (.33)
0.42 (.33)
0.42 (.33)
Free Speed, RPM 1,000 1,000 1,000 1,000
Spindle Thread, inches 3/8 3/8 3/8 3/8
Air Consumption, Free Speed, CFM (SCFM) [l/min] 3 (21.7) [85] 3 (21.7) [85] 3 (21.7) [85] 3 (21.7) [85]
Air Inlet Thread Size 1/4ʺ-18 NPT 1/4ʺ-18 NPT 1/4ʺ-18 NPT 1/4ʺ-18 NPT
Recommended Hose Size, inches (mm) 3/8 (10) 3/8 (10) 3/8 (10) 3/8 (10)
Vibration Level, m/s 2 5.9 5.9 5.9 5.9
Sound Level dB(A) Pressure 80 80 80 80
Length, inches (mm) 11 (281) 11 (281) 11 (281) 11 (281)
Weight, lb (kg) 3.7 (1.70) 3.7 (1.70) 4 (1.82) 4 (1.82)
Replacement Pad/Disc PS468-34 PS468-34V PS468-35 PS468-35V
®
Pad (VELCRO /optional) PS468-34HL PS468-34HL PS468-35HL PS468-35HL
PSG4645 6ʺ Geared Sander PSG4845 8ʺ Geared Sander
• Patented dust shield keeps dirt and dust out of the motor for • Removes and levels large amounts of filler materials
longer tool life such as glue or epoxy
• Ergonomic adjustable handle adjusts to fit the user’s hand for • Levels small welds
more comfort • Removes coatings prior to painting
• Robust front spindle and balanced crank help reduce • For use on metal, solid surfaces, wood and fiberglass
vibration while sanding for less user fatigue • Super-ergonomic adjustable grip is indexable to
• Eight-vane steel rotor provides more power for tough jobs multiple positions for optimum comfort
• Steel-cut gears provide better durability for less wear and tear • Soft grip housing material for maximum
• One-piece lightweight housing with soft grip material for vibration absorption
comfort and maximum vibration absorption PSG4845V 8ʺ Geared Sander with Vacuum
• Ergonomic throttle lever and built-in speed regulator for
consistent performance
• Includes non-vacuum PSA pad
®
• VELCRO Brand pad is optional
• Optional vacuum model (PSOG4645V) also available
PSG4645V 6ʺ Geared Sander with Vacuum
