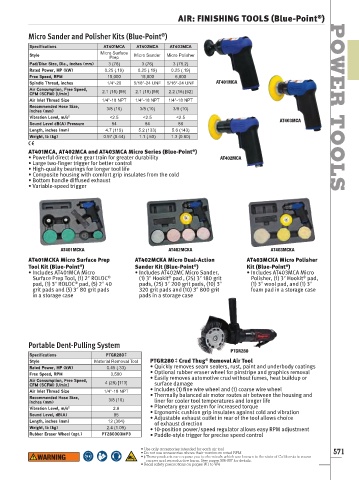

Page 573 - 实耐宝完整US版1500

AIR: FINISHING TOOLS (Blue-Point )
®

®
Micro Sander and Polisher Kits (Blue-Point )
Specifications AT401MCA AT402MCA AT403MCA
Micro Surface
Style Micro Sander Micro Polisher
Prep
Pad/Disc Size, Dia., inches (mm) 3 (76) 3 (76) 3 (76.2) POWER
Rated Power, HP (kW) 0.25 (.19) 0.25 (.19) 0.25 (.19)
Free Speed, RPM 15,000 15,000 6,000
Spindle Thread, inches 1/4ʺ-20 5/16ʺ-24 UNF 5/16ʺ-24 UNF AT401MCA
Air Consumption, Free Speed,
CFM (SCFM) [l/min] 2.1 (15) [59] 2.1 (15) [59] 2.2 (16) [62]
Air Inlet Thread Size 1/4ʺ-18 NPT 1/4ʺ-18 NPT 1/4ʺ-18 NPT
Recommended Hose Size,
inches (mm) 3/8 (10) 3/8 (10) 3/8 (10)
Vibration Level, m/s 2 <2.5 <2.5 <2.5
AT403MCA
Sound Level dB(A) Pressure 84 84 86
Length, inches (mm) 4.7 (119) 5.2 (133) 5.6 (143)
Weight, lb (kg) 0.97 (0.44) 1.1 (.50) 1.3 (0.60)

®
AT401MCA, AT402MCA and AT403MCA Micro Series (Blue-Point ) TOOLS
• Powerful direct drive gear train for greater durability AT402MCA
• Large two-finger trigger for better control
• High-quality bearings for longer tool life
• Composite housing with comfort grip insulates from the cold
• Bottom handle diffused exhaust
• Variable-speed trigger

AT401MCKA AT402MCKA AT403MCKA
AT401MCKA Micro Surface Prep AT402MCKA Micro Dual-Action AT403MCKA Micro Polisher
®
®
Tool Kit (Blue-Point ) Sander Kit (Blue-Point ) Kit (Blue-Point )
®
• Includes AT401MCA Micro • Includes AT402MC Micro Sander, • Includes AT403MCA Micro
®
Surface Prep Tool, (1) 2ʺ ROLOC (1) 3ʺ Hookit pad , (25) 3ʺ 180 grit Polisher, (1) 3ʺ Hookit pad,
®
®
pad, (1) 3ʺ ROLOC pad, (5) 2ʺ 40 pads, (25) 3ʺ 200 grit pads, (10) 3ʺ (1) 3ʺ wool pad, and (1) 3ʺ
®
grit pads and (5) 3ʺ 80 grit pads 320 grit pads and (10) 3ʺ 800 grit foam pad in a storage case
in a storage case pads in a storage case

Portable Dent-Pulling System
PTGR280
Specifications PTGR280 ‡
®
Style Material Removal Tool PTGR280 ‡ Crud Thug Removal Air Tool
Rated Power, HP (kW) 0.45 (.33) • Quickly removes seam sealers, rust, paint and underbody coatings
Free Speed, RPM 3,500 • Optional rubber eraser wheel for pinstripe and graphics removal
Air Consumption, Free Speed, 4 (28) [113] • Easily removes automotive crud without fumes, heat buildup or
CFM (SCFM) [l/min] surface damage
Air Inlet Thread Size 1/4ʺ-18 NPT • Includes (1) fine wire wheel and (1) coarse wire wheel
Recommended Hose Size, 3/8 (10) • Thermally balanced air motor routes air between the housing and
inches (mm) liner for cooler tool temperatures and longer life
Vibration Level, m/s 2 2.8 • Planetary gear system for increased torque
Sound Level, dB(A) 85 • Ergonomic cushion grip insulates against cold and vibration
• Adjustable exhaust outlet in rear of the tool allows choice
Length, inches (mm) 12 (304) of exhaust direction
Weight, lb (kg) 2.4 (1.09) • 10-position power/speed regulator allows easy RPM adjustment
Rubber Eraser Wheel (opt.) PT280303MP3 • Paddle-style trigger for precise speed control

• Use only accessories intended for each air tool
• Do not use accessories above their maximum rated RPM 571
• ‡ These products can expose you to chemicals which are known to the state of California to cause
cancer and reproductive harm. See pages 906-907 for details.
• Read safety precautions on pages W1 to W4

561-572 PT_Power Tools_SO1500_19-0154.indd 571 12/10/19 5:24 PM
