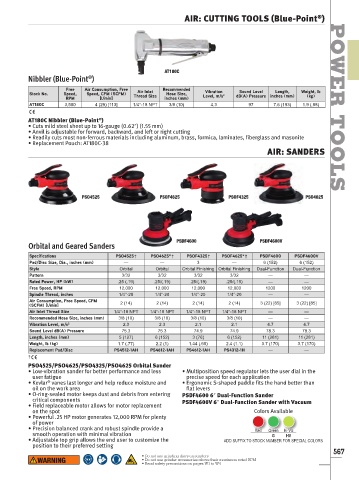

Page 569 - 实耐宝完整US版1500

AIR: CUTTING TOOLS (Blue-Point )
®

AT180C POWER
®
Nibbler (Blue-Point )
Free Air Consumption, Free Recommended
Stock No. Speed, Speed, CFM (SCFM) Air Inlet Hose Size, Vibration 2 Sound Level Length, Weight, lb
RPM [l/min] Thread Size inches (mm) Level, m/s dB(A) Pressure inches (mm) (kg)
AT180C 3,500 4 (29) [113] 1/4ʺ-18 NPT 3/8 (10) 4.3 97 7.6 (193) 1.9 (.88)

®
AT180C Nibbler (Blue-Point )
• Cuts mild steel sheet up to 16-gauge (0.62ʺ) (1.55 mm)
• Anvil is adjustable for forward, backward, and left or right cutting
• Readily cuts most non-ferrous materials including aluminum, brass, formica, laminates, fiberglass and masonite
• Replacement Pouch: AT180C-38
AIR: SANDERS TOOLS

PSO4525 PSOF4625 PSOF4325 PSO4625

PSDF4600 PSDF4600V
Orbital and Geared Sanders
Specifications PSO4525 † PSO4625* † PSOF4325 † PSOF4625* † PSDF4600 PSDF4600V
Pad/Disc Size, Dia., inches (mm) — — 3 — 6 (152) 6 (152)
Style Orbital Orbital Orbital Finishing Orbital Finishing Dual-Function Dual-Function
Pattern 3/32 3/32 3/32 3/32 — —
Rated Power, HP (kW) .25 (.19) .25/(.19) .25/(.19) .25/(.19) — —
Free Speed, RPM 12,000 12,000 12,000 12,000 1200 1200
Spindle Thread, inches 1/4ʺ-20 1/4ʺ-20 1/4ʺ-20 1/4ʺ-20 — —
Air Consumption, Free Speed, CFM
(SCFM) [l/min] 2 (14) 2 (14) 2 (14) 2 (14) 3 (22) [85] 3 (22) [85]
Air Inlet Thread Size 1/4ʺ-18 NPT 1/4ʺ-18 NPT 1/4ʺ-18 NPT 1/4ʺ-18 NPT — —
Recommended Hose Size, inches (mm) 3/8 (10) 3/8 (10) 3/8 (10) 3/8 (10) — —
Vibration Level, m/s 2 2.3 2.3 2.1 2.1 4.7 4.7
Sound Level dB(A) Pressure 75.3 75.3 74.9 74.9 78.3 78.3
Length, inches (mm) 5 (127) 6 (152) 3 (76) 6 (152) 11 (281) 11 (281)
Weight, lb (kg) 1.7 (.77) 2.2 (1) 1.44 (.65) 2.4 (1.1) 3.7 (170) 3.7 (170)
Replacement Pad/Disc PS4512-1AH PS4612-1AH PS4612-1AH PS4312-1H — —
†
PSO4525/PSO4625/PSO4325/PSO4625 Orbital Sander
• Low-vibration sander for better performance and less • Multiposition speed regulator lets the user dial in the
user fatigue precise speed for each application
®
• Kevlar vanes last longer and help reduce moisture and • Ergonomic S-shaped paddle fits the hand better than
oil on the work area flat levers
• O-ring-sealed motor keeps dust and debris from entering PSDF4600 6ʺ Dual-Function Sander
critical components PSDF4600V 6ʺ Dual-Function Sander with Vacuum
• Field replaceable motor allows for motor replacement
on the spot Colors Available
• Powerful .25 HP motor generates 12,000 RPM for plenty
of power
• Precision balanced crank and robust spindle provide a Red Green Hi-Viz
smooth operation with minimal vibration G HV
• Adjustable top grip allows the end user to customize the ADD SUFFIX TO STOCK NUMBER FOR SPECIAL COLORS
position to their preferred setting
567
• Do not use grinding discs on sanders
• Do not use grinder accessories above their maximum rated RPM
• Read safety precautions on pages W1 to W4

561-572 PT_Power Tools_SO1500_19-0154.indd 567 12/10/19 5:24 PM
