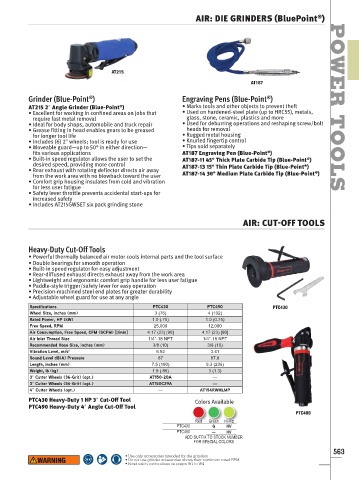

Page 565 - 实耐宝完整US版1500

AIR: DIE GRINDERS (BluePoint )
®

AT215 POWER
AT187

®
®
Grinder (Blue-Point ) Engraving Pens (Blue-Point )
®
AT215 2ʺ Angle Grinder (Blue-Point ) • Marks tools and other objects to prevent theft
• Excellent for working in confined areas on jobs that • Used on hardened-steel plate (up to HRC55), metals,
require fast metal removal glass, stone, ceramic, plastics and more
• Ideal for body shops, automobile and truck repair • Used for deburring operations and reshaping screw/bolt
• Grease fitting in head enables gears to be greased heads for removal
for longer tool life • Rugged metal housing
• Includes (6) 2ʺ wheels; tool is ready for use • Knurled fingertip control
• Moveable guard—up to 50° in either direction— • Tips sold separately
fits various applications AT187 Engraving Pen (Blue-Point ) TOOLS
®
• Built-in speed regulator allows the user to set the AT187-11 45° Thick Plate Carbide Tip (Blue-Point )
®
desired speed, providing more control AT187-13 15° Thin Plate Carbide Tip (Blue-Point )
®
• Rear exhaust with rotating deflector directs air away ®
from the work area with no blowback toward the user AT187-14 30° Medium Plate Carbide Tip (Blue-Point )
• Comfort grip housing insulates from cold and vibration
for less user fatigue
• Safety lever throttle prevents accidental start-ups for
increased safety
• Includes AT215GWSET six pack grinding stone
AIR: CUT-OFF TOOLS

Heavy-Duty Cut-Off Tools
• Powerful thermally balanced air motor cools internal parts and the tool surface
• Double bearings for smooth operation
• Built-in speed regulator for easy adjustment
• Rear-diffused exhaust directs exhaust away from the work area
• Lightweight and ergonomic comfort grip handle for less user fatigue
• Paddle-style trigger/safety lever for easy operation
• Precision-machined steel end plates for greater durability
• Adjustable wheel guard for use at any angle
Specifications PTC430 PTC490 PTC430
Wheel Size, inches (mm) 3 (76) 4 (102)
Rated Power, HP (kW) 1.0 (.75) 1.0 (0.75)
Free Speed, RPM 25,000 12,000
Air Consumption, Free Speed, CFM (SCFM) [l/min] 4.17 (23) [90] 4.17 (23) [90]
Air Inlet Thread Size 1/4ʺ-18 NPT 1/4ʺ-18 NPT
Recommended Hose Size, inches (mm) 3/8 (10) 3/8 (10)
Vibration Level, m/s 2 6.92 3.41
Sound Level dB(A) Pressure 87 87.8
Length, inches (mm) 7.5 (190) 9.3 (236)
Weight, lb (kg) 1.9 (.86) 3 (1.3)
3ʺ Cutter Wheels (36-Grit) (opt.) AT150-20A —
3ʺ Cutter Wheels (54-Grit) (opt.) AT150C29A —
4” Cutter Wheels (opt.) — AT154RWHLMP
PTC430 Heavy-Duty 1 HP 3ʺ Cut-Off Tool Colors Available
PTC490 Heavy-Duty 4ʺ Angle Cut-Off Tool
PTC490
Red Green Hi-Viz
PTC430 G HV
PTC490 — HV
ADD SUFFIX TO STOCK NUMBER
FOR SPECIAL COLORS
563
• Use only accessories intended for die grinders
• Do not use grinder accessories above their maximum rated RPM
• Read safety precautions on pages W1 to W4
