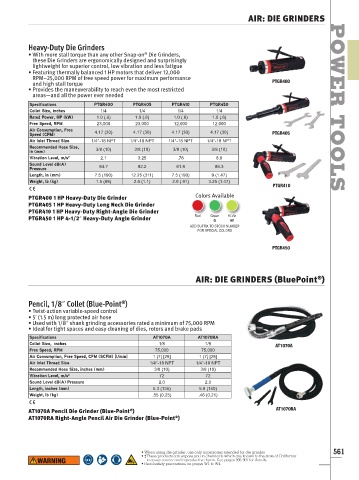

AIR: DIE GRINDERS

Heavy-Duty Die Grinders
®
• With more stall torque than any other Snap-on Die Grinders,
these Die Grinders are ergonomically designed and surprisingly
lightweight for superior control, low vibration and less fatigue POWER
• Featuring thermally balanced 1 HP motors that deliver 12,000
RPM–25,000 RPM of free speed power for maximum performance
and high stall torque PTGR400
• Provides the maneuverability to reach even the most restricted
areas—and all the power ever needed
Specifications PTGR400 PTGR405 PTGR410 PTGR450
Collet Size, inches 1/4 1/4 1/4 1/4
Rated Power, HP (kW) 1.0 (.6) 1.0 (.6) 1.0 (.6) 1.0 (.6)
Free Speed, RPM 23,000 23,000 12,000 12,000
Air Consumption, Free
Speed (CFM) 4.17 (30) 4.17 (30) 4.17 (30) 4.17 (30) PTGR405
Air Inlet Thread Size 1/4ʺ-18 NPT 1/4ʺ-18 NPT 1/4ʺ-18 NPT 1/4ʺ-18 NPT
Recommended Hose Size,
in (mm) 3/8 (10) 3/8 (10) 3/8 (10) 3/8 (10) TOOLS
Vibration Level, m/s 2 2.1 3.25 .78 8.9
Sound Level dB(A)
Pressure 84.7 82.2 81.8 86.3
Length, in (mm) 7.5 (190) 12.25 (311) 7.5 (190) 9 (1.47)
Weight, lb (kg) 1.5 (68) 2.6 (1.1) 2.0 (.91) 3.25 (1.47)
PTGR410
PTGR400 1 HP Heavy-Duty Die Grinder Colors Available
PTGR405 1 HP Heavy-Duty Long Neck Die Grinder
PTGR410 1 HP Heavy-Duty Right-Angle Die Grinder
PTGR450 1 HP 4-1/2ʺ Heavy-Duty Angle Grinder Red Green Hi-Viz
HV
G
ADD SUFFIX TO STOCK NUMBER
FOR SPECIAL COLORS
PTGR450

AIR: DIE GRINDERS (BluePoint )
®

Pencil, 1/8ʺ Collet (Blue-Point )
®
• Twist-action variable-speed control
• 5ʹ (1.5 m) long protected air hose
• Used with 1/8ʺ shank grinding accessories rated a minimum of 75,000 RPM
• Ideal for tight spaces and easy cleaning of dies, rotors and brake pads
Specifications AT1070A AT1070RA
Collet Size, inches 1/8 1/8 AT1070A
Free Speed, RPM 75,000 75,000
Air Consumption, Free Speed, CFM (SCFM) [l/min] 1 (7) [28] 1 (7) [28]
Air Inlet Thread Size 1/4ʺ-18 NPT 1/4ʺ-18 NPT
Recommended Hose Size, inches (mm) 3/8 (10) 3/8 (10)
Vibration Level, m/s 2 72 72
Sound Level dB(A) Pressure 2.0 2.0
Length, inches (mm) 5.3 (135) 5.9 (150)
Weight, lb (kg) .55 (0.25) .46 (0.21)

AT1070A Pencil Die Grinder (Blue-Point ) AT1070RA
®
AT1070RA Right-Angle Pencil Air Die Grinder (Blue-Point )
®

• When using die grinder, use only accessories intended for die grinder 561
• ‡ These products can expose you to chemicals which are known to the state of California
to cause cancer and reproductive harm. See pages 906-907 for details.
• Read safety precautions on pages W1 to W4
