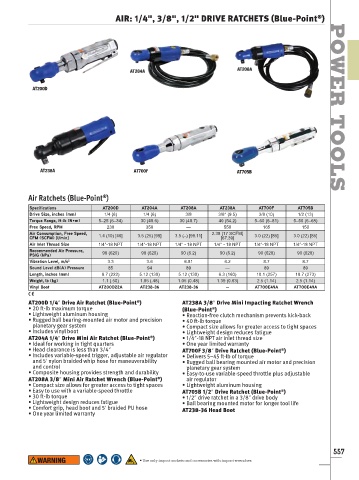

AIR: 1/4", 3/8", 1/2" DRIVE RATCHETS (Blue-Point )
®

AT208A POWER
AT204A

AT200D

AT238A AT700F AT705B TOOLS

Air Ratchets (Blue-Point )
®
Specifications AT200D AT204A AT208A AT238A AT700F AT705B
Drive Size, inches (mm) 1/4 (6) 1/4 (6) 3/8 3/8ʺ (9.5) 3/8 (10) 1/2 (13)
Torque Range, ft-lb (N•m) 5–25 (6–34) 30 (40.6) 30 (40.7) 40 (54.2) 5–60 (6–81) 5–50 (6–68)
Free Speed, RPM 230 350 — 550 165 150
Air Consumption, Free Speed, 2.38 (17 SCFM)
CFM (SCFM) [l/min] 1.4 (10) [40] 3.5 (25) [99] 3.5 (–) [99.11] [67.39] 3.0 (22) [85] 3.0 (22) [85]
Air Inlet Thread Size 1/4ʺ-18 NPT 1/4ʺ-18 NPT 1/4ʺ - 18 NPT 1/4ʺ - 18 NPT 1/4ʺ-18 NPT 1/4ʺ-18 NPT
Recommended Air Pressure,
PSIG (kPa) 90 (620) 90 (620) 90 (6.2) 90 (6.2) 90 (620) 90 (620)
Vibration Level, m/s 2 3.3 3.6 6.81 6.2 8.7 8.7
Sound Level dB(A) Pressure 85 94 89 — 89 89
Length, inches (mm) 8.7 (222) 5.12 (130) 5.12 (130) 6.3 (160) 10.1 (257) 10.7 (273)
Weight, lb (kg) 1.1 (.50) 1.05 (.48) 1.05 (0.48) 1.39 (0.63) 2.5 (1.14) 2.5 (1.14)
Vinyl Boot AT200D22A AT238-36 AT238-36 — AT700E49A AT700E49A

AT200D 1/4ʺ Drive Air Ratchet (Blue-Point ) AT238A 3/8ʺ Drive Mini Impacting Ratchet Wrench
®
• 20 ft-lb maximum torque (Blue-Point )
®
• Lightweight aluminum housing • Reaction-free clutch mechanism prevents kick-back
• Rugged ball bearing-mounted air motor and precision • 40 ft-lb torque
planetary gear system • Compact size allows for greater access to tight spaces
• Includes vinyl boot • Lightweight design reduces fatigue
AT204A 1/4ʺ Drive Mini Air Ratchet (Blue-Point ) • 1/4ʺ-18 NPT air inlet thread size
®
• Ideal for working in tight quarters • One year limited warranty
• Head clearance is less than 3/4ʺ AT700F 3/8ʺ Drive Ratchet (Blue-Point )
®
• Includes variable-speed trigger, adjustable air regulator • Delivers 5–45 ft-lb of torque
and 5ʹ nylon braided whip hose for maneuverability • Rugged ball bearing mounted air motor and precision
and control planetary gear system
• Composite housing provides strength and durability • Easy-to-use variable-speed throttle plus adjustable
®
AT208A 3/8ʺ Mini Air Ratchet Wrench (Blue-Point ) air regulator
• Compact size allows for greater access to tight spaces • Lightweight aluminum housing
• Easy to use with a variable-speed throttle AT705B 1/2ʺ Drive Ratchet (Blue-Point )
®
• 30 ft-lb torque • 1/2ʺ drive ratchet in a 3/8ʺ drive body
• Lightweight design reduces fatigue • Ball bearing mounted motor for longer tool life
• Comfort grip, head boot and 5ʹ braided PU hose AT238-36 Head Boot
• One year limited warranty

557
• Use only impact sockets and accessories with impact wrenches
