AIR: 3/8" DRIVE IMPACT WRENCHES
TOOLS

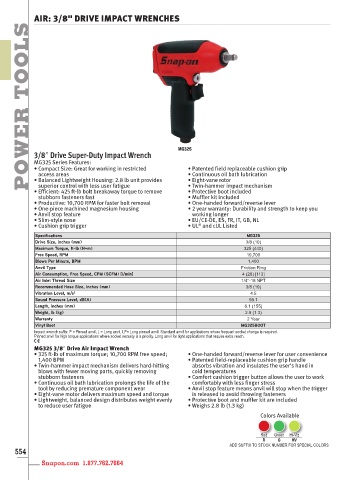

POWER 3/8ʺ Drive Super-Duty Impact Wrench MG325

MG325 Series Features:
• Compact Size: Great for working in restricted
• Patented field replaceable cushion grip
access areas
• Eight-vane rotor
• Balanced Lightweight Housing: 2.8 lb unit provides
superior control with less user fatigue
• Twin-hammer impact mechanism
• Efficient: 425 ft-lb bolt breakaway torque to remove • Continuous oil bath lubrication
• Protective boot included
stubborn fasteners fast • Muffler kit included
• Productive: 10,700 RPM for faster bolt removal • One-handed forward/reverse lever
• One-piece machined magnesium housing • 2 year warranty: Durability and strength to keep you
• Anvil stop feature working longer
• Slim-style nose • EU/CE-DE, ES, FR, IT, GB, NL
®
• Cushion grip trigger • UL and cUL Listed
Specifications MG325
Drive Size, inches (mm) 3/8 (10)
Maximum Torque, ft-lb (N•m) 325 (440)
Free Speed, RPM 10,700
Blows Per Minute, BPM 1,400
Anvil Type Friction Ring
Air Consumption, Free Speed, CFM (SCFM) [l/min] 4 (28) [113]
Air Inlet Thread Size 1/4ʺ-18 NPT
Recommended Hose Size, inches (mm) 3/8 (10)
Vibration Level, m/s 2 4.5
Sound Pressure Level, dB(A) 99.1
Length, inches (mm) 6.1 (155)
Weight, lb (kg) 2.8 (1.3)
Warranty 2 Year
Vinyl Boot MG325BOOT
Impact wrench suffix: P = Pinned anvil, L = Long anvil, LP= Long pinned anvil. Standard anvil for applications where frequent socket change is required.
Pinned anvil for high torque applications where socket security is a priority. Long anvil for tight applications that require extra reach.

MG325 3/8ʺ Drive Air Impact Wrench
• 325 ft-lb of maximum torque; 10,700 RPM free speed; • One-handed forward/reverse lever for user convenience
1,400 BPM • Patented field-replaceable cushion grip handle
• Twin-hammer impact mechanism delivers hard-hitting absorbs vibration and insulates the user’s hand in
blows with fewer moving parts, quickly removing cold temperatures
stubborn fasteners • Comfort cushion trigger button allows the user to work
• Continuous oil bath lubrication prolongs the life of the comfortably with less finger stress
tool by reducing premature component wear • Anvil stop feature means anvil will stop when the trigger
• Eight-vane motor delivers maximum speed and torque is released to avoid throwing fasteners
• Lightweight, balanced design distributes weight evenly • Protective boot and muffler kit are included
to reduce user fatigue • Weighs 2.8 lb (1.3 kg)
Colors Available

Red Green Hi-Viz
R G HV
ADD SUFFIX TO STOCK NUMBER FOR SPECIAL COLORS
