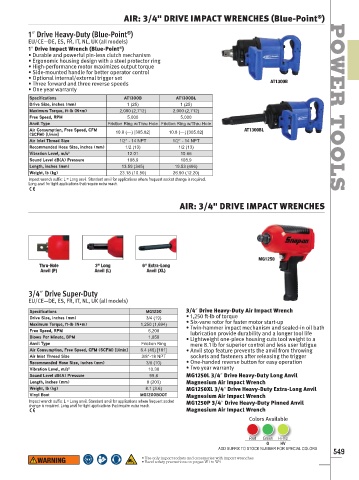

AIR: 3/4" DRIVE IMPACT WRENCHES (Blue-Point )
®
®
1ʺ Drive Heavy-Duty (Blue-Point )
EU/CE—DE, ES, FR, IT, NL, UK (all models)
1ʺ Drive Impact Wrench (Blue-Point )
®
• Durable and powerful pin-less clutch mechanism
• Ergonomic housing design with a steel protector ring
• High-performance motor maximizes output torque POWER
• Side-mounted handle for better operator control
• Optional internal/external trigger set
• Three forward and three reverse speeds AT1300B
• One year warranty
Specifications AT1300B AT1300BL
Drive Size, inches (mm) 1 (25) 1 (25)
Maximum Torque, ft-lb (N•m) 2,000 (2,712) 2,000 (2,712)
Free Speed, RPM 5,000 5,000
Anvil Type Friction Ring w/Thru Hole Friction Ring w/Thru Hole
Air Consumption, Free Speed, CFM AT1300BL
(SCFM) [l/min] 10.8 (—) [305.82] 10.8 (—) [305.82]
Air Inlet Thread Size 1/2ʺ - 14 NPT 1/2ʺ - 14 NPT
Recommended Hose Size, inches (mm) 1/2 (13) 1/2 (13)
Vibration Level, m/s 2 12.01 10.66 TOOLS
Sound Level dB(A) Pressure 108.9 108.9
Length, inches (mm) 13.59 (345) 19.53 (496)
Weight, lb (kg) 23.18 (10.50) 26.90 (12.20)
Impact wrench suffix: L = Long anvil. Standard anvil for applications where frequent socket change is required.
Long anvil for tight applications that require extra reach.

AIR: 3/4" DRIVE IMPACT WRENCHES

MG1250
Thru-Hole 3" Long 6" Extra-Long
Anvil (P) Anvil (L) Anvil (XL)

3/4ʺ Drive Super-Duty
EU/CE—DE, ES, FR, IT, NL, UK (all models)

Specifications MG1250 3/4ʺ Drive Heavy-Duty Air Impact Wrench
Drive Size, inches (mm) 3/4 (19) • 1,250 ft-lb of torque
Maximum Torque, ft-lb (N•m) 1,250 (1,694) • Six-vane rotor for faster motor start-up
Free Speed, RPM 6,200 • Twin-hammer impact mechanism and sealed-in oil bath
lubrication provide durability and a longer tool life
Blows Per Minute, BPM 1,050 • Lightweight one-piece housing cuts tool weight to a
Anvil Type Friction Ring mere 8.1 lb for superior control and less user fatigue
Air Consumption, Free Speed, CFM (SCFM) [l/min] 6.4 (46) [181] • Anvil stop feature prevents the anvil from throwing
Air Inlet Thread Size 3/8ʺ-18 NPT sockets and fasteners after releasing the trigger
Recommended Hose Size, inches (mm) 3/8 (10) • One-handed reverse button for easy operation
Vibration Level, m/s 2 10.38 • Two year warranty
Sound Level dB(A) Pressure 99.8 MG1250L 3/4ʺ Drive Heavy-Duty Long Anvil
Length, inches (mm) 8 (203) Magnesium Air Impact Wrench
Weight, lb (kg) 8.1 (3.6) MG1250XL 3/4ʺ Drive Heavy-Duty Extra-Long Anvil
Vinyl Boot MG1200BOOT Magnesium Air Impact Wrench
Impact wrench suffix: L = Long anvil. Standard anvil for applications where frequent socket MG1250P 3/4ʺ Drive Heavy-Duty Pinned Anvil
change is required. Long anvil for tight applications that require extra reach.
Magnesium Air Impact Wrench
Colors Available

Red Green Hi-Viz
G HV
ADD SUFFIX TO STOCK NUMBER FOR SPECIAL COLORS
549
• Use only impact sockets and accessories with impact wrenches
• Read safety precautions on pages W1 to W4
